Catalogue group 60
Angle measuring instruments
Mechanical and digital protractors and universal bevel protractors for direct angle measurement, setting work and data transfer.
Product families
Select a suitable instrument

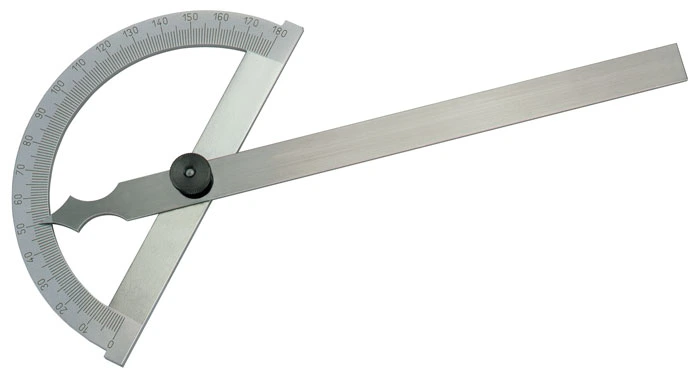

Protractors 0° to 180°
Classic matt chrome-plated steel protractors with a lockable measuring blade.
View variants and technical data

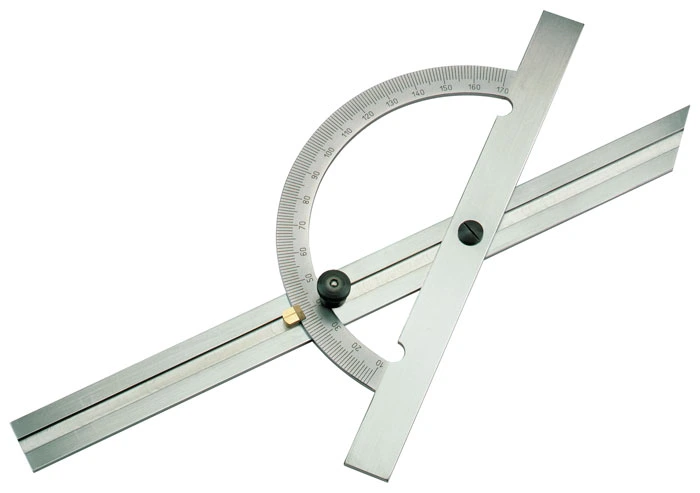

Protractors with adjustable rail
Protractors from 10° to 170° with a measuring rail adjustable over its full length.
View variants and technical data

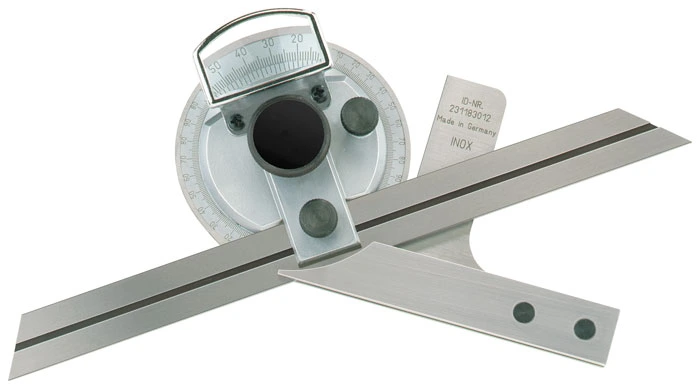

Universal bevel protractors with fine adjustment
Stainless-steel universal bevel protractors with vernier, panoramic magnifier and fine adjustment.
View variants and technical data

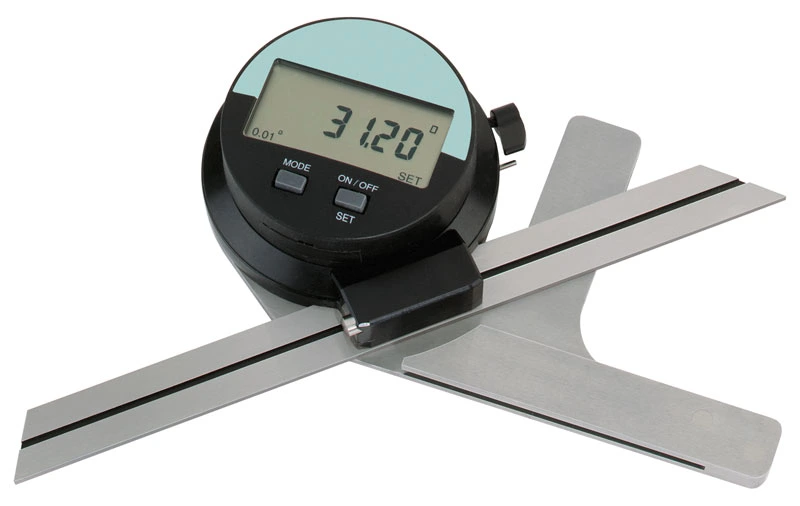

Universal bevel protractors with digital display
Digital universal bevel protractors with fine adjustment, selectable display and opto-isolated RS-232 output.
View variants and technical data

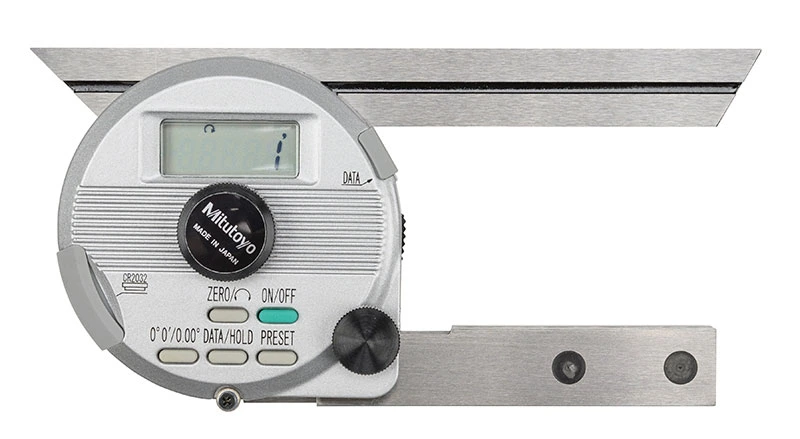

Mitutoyo DIGIMATIC universal bevel protractors
Mitutoyo Series 187 DIGIMATIC universal bevel protractors with data output, fine adjustment and sliding rail.
View variants and technical dataDirect access
Accessories
Search cables, holders, setting standards and other accessories for Angle measuring instruments directly.
View accessoriesSales, calibration and repair from one source
For suitable products, a factory or DAkkS calibration can be requested together with the instrument.
