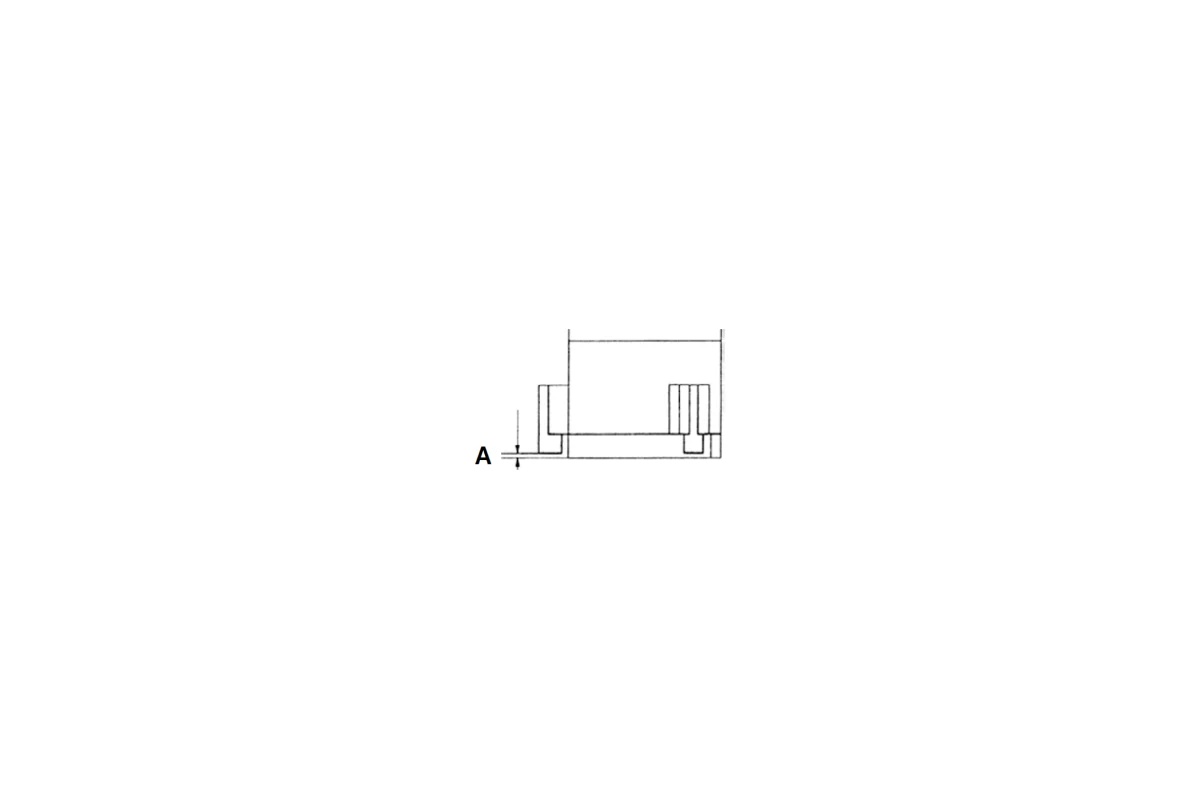

Bowers XTD - technische Zeichnung

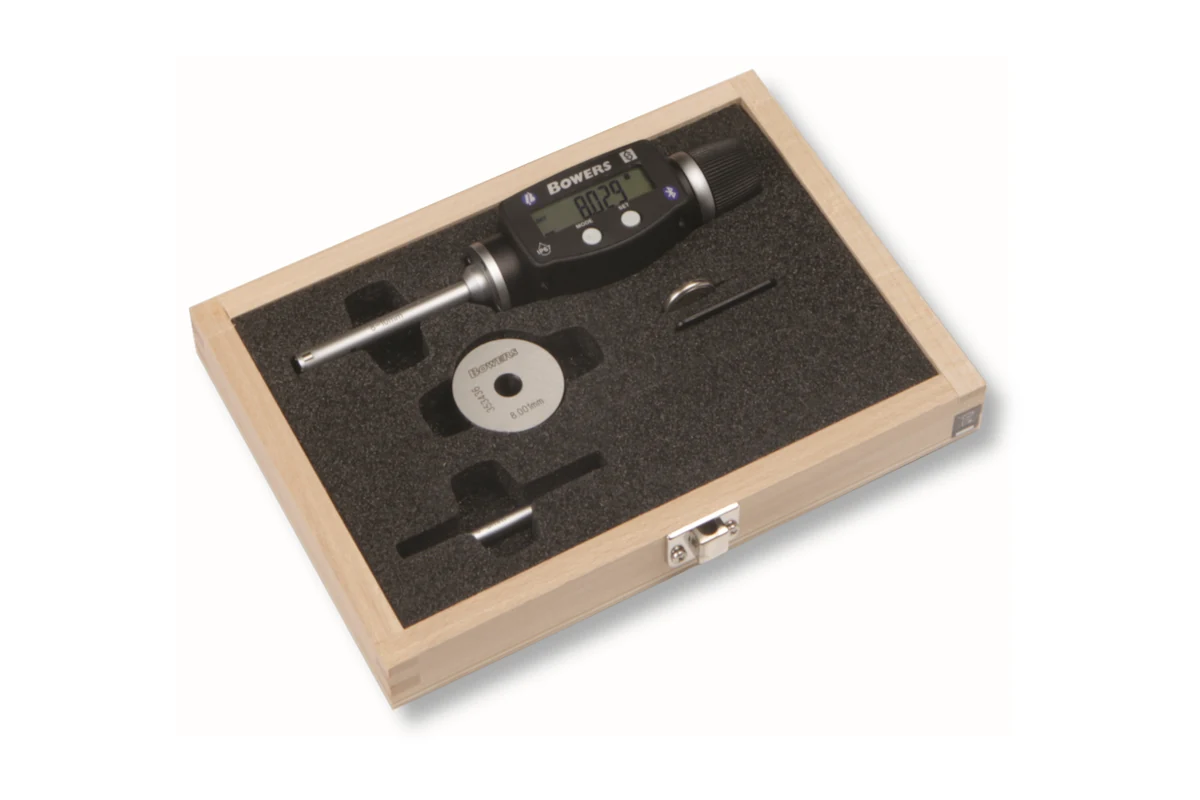

Bowers XTD Satz
Bowers Verlängerung
Bowers – XTD
XTD digital inside micrometers
Digital Bowers XTD two- and three-point bore micrometers with IP67, data output and optional Bluetooth for 2 to 300 mm.
- Digital measuring range from 2 to 300 mm
- Two-point measurement to 6 mm, three-point from 6 mm
- IP67, four preset memories and two-button operation
- Data output with optional integrated Bluetooth
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Digital bore measurement over a wide range
Bowers XTD combines heads from 2 to 300 mm with an ergonomic digital display. Small ranges to 6 mm use two-point contact; larger heads measure with three self-centring contacts.
Robust electronics and simple operation
IP67 electronics are protected against dust and temporary water ingress. The large LCD, two-button operation and four preset memories simplify changes between recurring tasks. A ratchet stop supports consistent measuring conditions.
Flexible measurement data transfer
The proximity output and optional integrated Bluetooth provide bidirectional communication with suitable acquisition systems. Results can therefore be documented and processed for quality analysis.
Blind bores, durable contacts and setting
Blind-bore measurement is possible at 2–6 mm and from 12.5 mm. Three-point heads from 12.5 mm use carbide contacts. A suitable ring is required for setting; Ballbach advises on the system, wireless connection, calibration and repair.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 2525101 | Messflächen: Stahl gehärtet | 2-2,5 mm | 0,001 mm | €1,757.00 | ||
2525101 – Additional information about this versionXTD digital inside micrometer 2-2,5 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 2-2,5 mm; Resolution: 0,001 mm.
|
||||||
| 2525102 | Messflächen: Stahl gehärtet | 2,5-3 mm | 0,001 mm | €1,757.00 | ||
2525102 – Additional information about this versionXTD digital inside micrometer 2,5-3 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 2,5-3 mm; Resolution: 0,001 mm.
|
||||||
| 2525103 | Messflächen: Stahl gehärtet | 3-4 mm | 0,001 mm | €1,757.00 | ||
2525103 – Additional information about this versionXTD digital inside micrometer 3-4 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 3-4 mm; Resolution: 0,001 mm.
|
||||||
| 2525104 | Messflächen: Stahl gehärtet | 4-5 mm | 0,001 mm | €1,757.00 | ||
2525104 – Additional information about this versionXTD digital inside micrometer 4-5 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 4-5 mm; Resolution: 0,001 mm.
|
||||||
| 2525105 | Messflächen: Stahl gehärtet | 5-6 mm | 0,001 mm | €1,757.00 | ||
2525105 – Additional information about this versionXTD digital inside micrometer 5-6 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 5-6 mm; Resolution: 0,001 mm.
|
||||||
| 2525106 | Messflächen: Stahl gehärtet | 6-8 mm | 0,001 mm | €1,163.00 | ||
2525106 – Additional information about this versionXTD digital inside micrometer 6-8 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 6-8 mm; Resolution: 0,001 mm.
|
||||||
| 2525107 | Messflächen: Stahl gehärtet | 8-10 mm | 0,001 mm | €1,163.00 | ||
2525107 – Additional information about this versionXTD digital inside micrometer 8-10 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 8-10 mm; Resolution: 0,001 mm.
|
||||||
| 2525108 | Messstifte aus Hartmetall | 10-12,5 mm | 0,001 mm | €1,174.00 | ||
2525108 – Additional information about this versionXTD digital inside micrometer 10-12,5 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 10-12,5 mm; Resolution: 0,001 mm.
|
||||||
| 2525109 | Messstifte aus Hartmetall | 12,5-16 mm | 0,001 mm | €1,188.00 | ||
2525109 – Additional information about this versionXTD digital inside micrometer 12,5-16 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 12,5-16 mm; Resolution: 0,001 mm.
|
||||||
| 2525110 | Messstifte aus Hartmetall | 16-20 mm | 0,001 mm | €1,176.00 | ||
2525110 – Additional information about this versionXTD digital inside micrometer 16-20 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 16-20 mm; Resolution: 0,001 mm.
|
||||||
| 2525111 | Messstifte aus Hartmetall | 20-25 mm | 0,001 mm | €1,416.00 | ||
2525111 – Additional information about this versionXTD digital inside micrometer 20-25 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 20-25 mm; Resolution: 0,001 mm.
|
||||||
| 2525112 | Messstifte aus Hartmetall | 25-35 mm | 0,001 mm | €1,620.00 | ||
2525112 – Additional information about this versionXTD digital inside micrometer 25-35 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 25-35 mm; Resolution: 0,001 mm.
|
||||||
| 2525113 | Messstifte aus Hartmetall | 35-50 mm | 0,001 mm | €1,685.00 | ||
2525113 – Additional information about this versionXTD digital inside micrometer 35-50 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 35-50 mm; Resolution: 0,001 mm.
|
||||||
| 2525114 | Messstifte aus Hartmetall | 50-65 mm | 0,001 mm | €1,859.00 | ||
2525114 – Additional information about this versionXTD digital inside micrometer 50-65 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 50-65 mm; Resolution: 0,001 mm.
|
||||||
| 2525115 | Messstifte aus Hartmetall | 65-80 mm | 0,001 mm | €1,859.00 | ||
2525115 – Additional information about this versionXTD digital inside micrometer 65-80 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 65-80 mm; Resolution: 0,001 mm.
|
||||||
| 2525116 | Messstifte aus Hartmetall | 80-100 mm | 0,001 mm | €1,941.00 | ||
2525116 – Additional information about this versionXTD digital inside micrometer 80-100 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 80-100 mm; Resolution: 0,001 mm.
|
||||||
| 2525117 | Messstifte aus Hartmetall | 100-125 mm | 0,001 mm | €1,986.00 | ||
2525117 – Additional information about this versionXTD digital inside micrometer 100-125 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 100-125 mm; Resolution: 0,001 mm.
|
||||||
| 2525118 | Messstifte aus Hartmetall | 125-150 mm | 0,001 mm | €2,050.00 | ||
2525118 – Additional information about this versionXTD digital inside micrometer 125-150 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 125-150 mm; Resolution: 0,001 mm.
|
||||||
| 2525119 | Messstifte aus Hartmetall | 150-175 mm | 0,001 mm | €2,358.00 | ||
2525119 – Additional information about this versionXTD digital inside micrometer 150-175 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 150-175 mm; Resolution: 0,001 mm.
|
||||||
| 2525120 | Messstifte aus Hartmetall | 175-200 mm | 0,001 mm | €2,515.00 | ||
2525120 – Additional information about this versionXTD digital inside micrometer 175-200 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 175-200 mm; Resolution: 0,001 mm.
|
||||||
| 2525121 | Messstifte aus Hartmetall | 200-225 mm | 0,001 mm | €2,814.00 | ||
2525121 – Additional information about this versionXTD digital inside micrometer 200-225 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 200-225 mm; Resolution: 0,001 mm.
|
||||||
| 2525122 | Messstifte aus Hartmetall | 225-250 mm | 0,001 mm | €3,141.00 | ||
2525122 – Additional information about this versionXTD digital inside micrometer 225-250 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 225-250 mm; Resolution: 0,001 mm.
|
||||||
| 2525123 | Messstifte aus Hartmetall | 250-275 mm | 0,001 mm | €3,198.00 | ||
2525123 – Additional information about this versionXTD digital inside micrometer 250-275 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 250-275 mm; Resolution: 0,001 mm.
|
||||||
| 2525124 | Messstifte aus Hartmetall | 275-300 mm | 0,001 mm | €3,533.00 | ||
2525124 – Additional information about this versionXTD digital inside micrometer 275-300 mm is a version of the XTD digital inside micrometers product family. Technical features: Measuring range: 275-300 mm; Resolution: 0,001 mm.
|
||||||
