Feinzeiger mit Freihub und Stoßschutz
Comparators with free lift and shock protection
Comparators to DIN 879-1 with free lift, shock protection and approximately 1.4 N measuring force.
- For comparative, run-out and alignment measurements
- Graduation: 0.001–0.01 mm
- Standard: DIN 879-1
- Choice of 2 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Comparators to DIN 879-1 with free lift, shock protection and approximately 1.4 N measuring force.
Dial gauges, precision comparators and test indicators display small displacement or dimensional deviations relative to a set reference. They are used in stands, inspection fixtures and directly on machines.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Graduation: 0.001–0.01 mm
- Standard: DIN 879-1
- Choice of 2 versions
Typical applications
Typical applications include radial and axial run-out checks, alignment, centring, height comparison and monitoring small movements. Measuring range, resolution, contact arrangement and protection class must suit the inspection task.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements. For suitable instruments, we also provide repair and spare-parts service. A suitable factory calibration can be supplied together with the instrument. DAkkS calibration is available on request where the measurand and version are within the accredited scope.
Article variants
Select the suitable version
| Ballbach item no. | Display range | Graduation | Net price | Details | Inquiry |
|---|---|---|---|---|---|

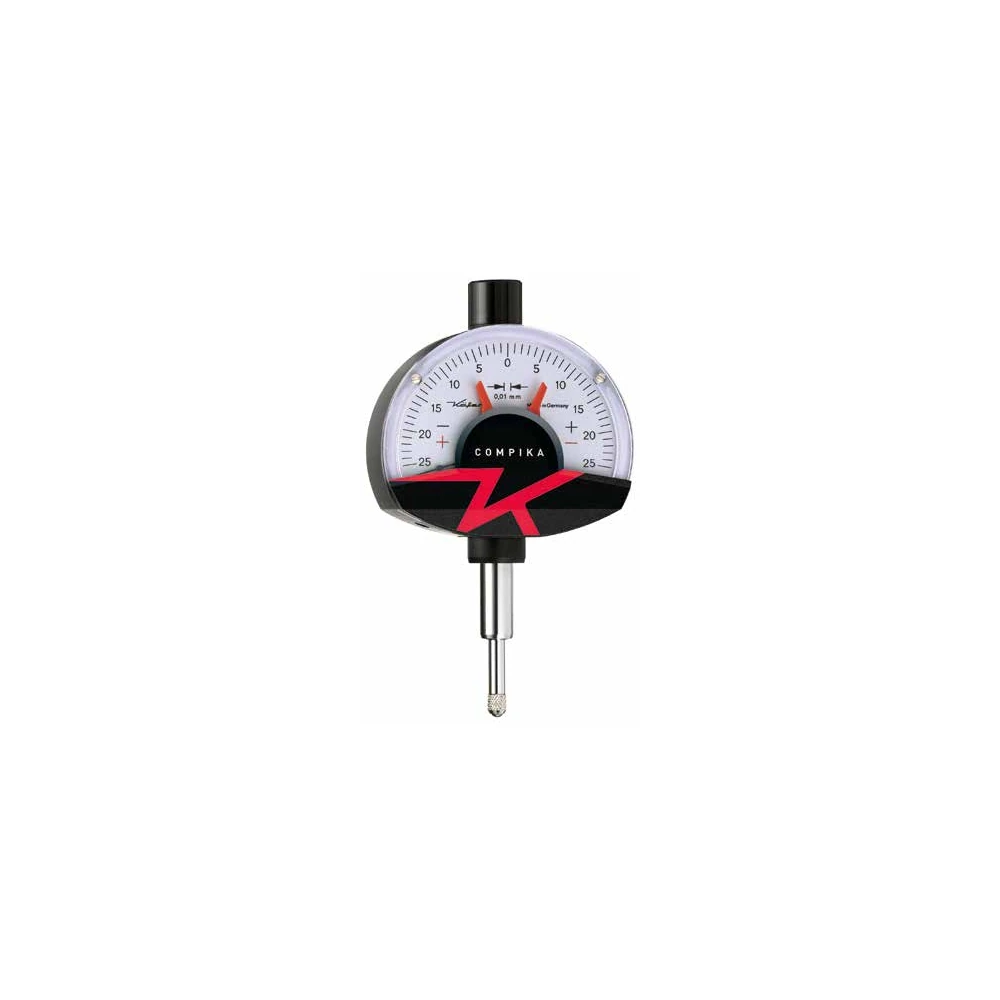

| 3101001 | ± 0,25 | 0,01 | €184.00 | ||
3101001 – Additional information about this version
Comparator with free lift and shock protection, ± 0.25 mm is a version of the Comparators with free lift and shock protection product family. Technical features: Graduation: 0,01 mm; Standard: DIN 879-1.
|
|||||

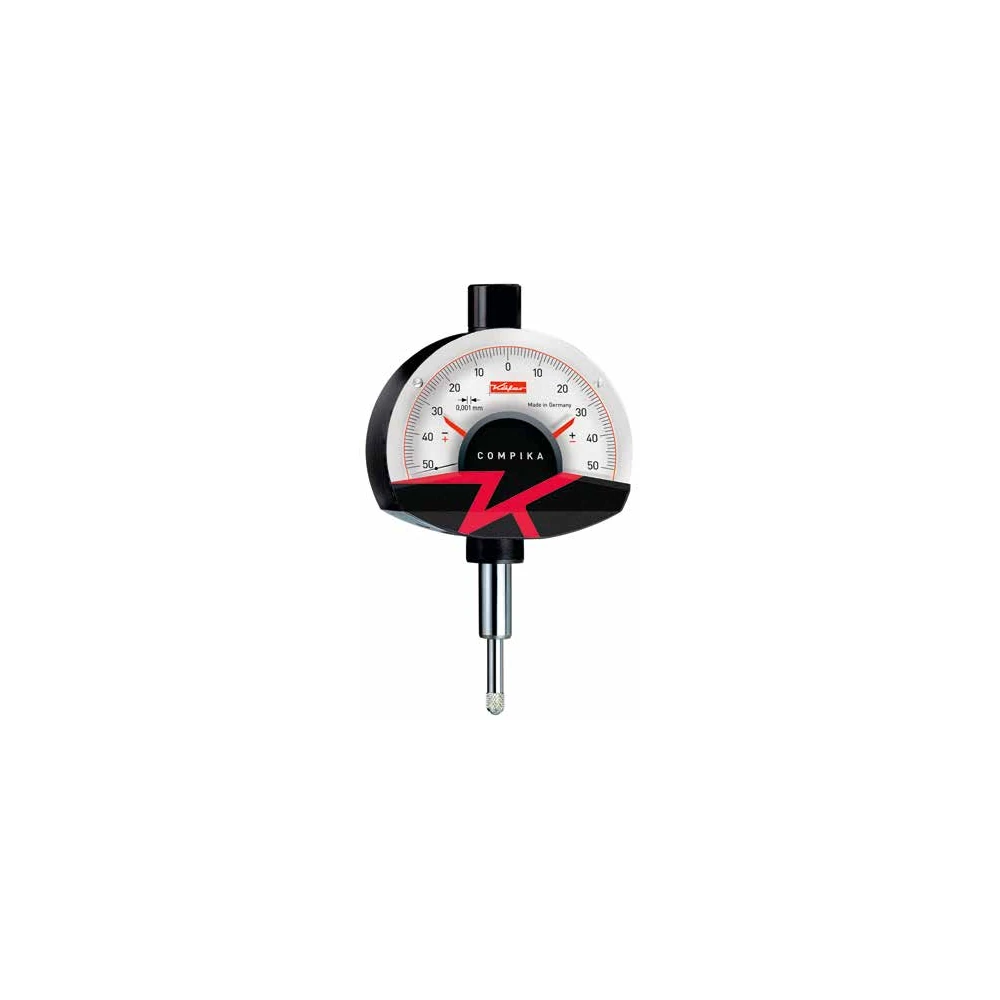

| 3101002 | ± 0,05 | 0,001 | €224.00 | ||
3101002 – Additional information about this version
Comparator with free lift and shock protection, ± 0.05 mm is a version of the Comparators with free lift and shock protection product family. Technical features: Graduation: 0,001 mm; Standard: DIN 879-1.
|
|||||
