TESA – TESA fiktive Tasternormale
TESA fictitious probe standards
Fictitious probe standards for checking and calibrating TESATRONIC, BPI, BPX and other TESA instruments.
- Checking and calibration of electronic TESA instruments
- Defined positive and negative signal values
- Individual standards and a three-piece set available
- Further nominal values on request
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application with TESA instruments
The fictitious probe standards are used to check and calibrate electronic TESA instruments with probe inputs, including TESATRONIC, BPI, BPX and comparable display units.
Defined positive and negative values
Each standard represents a fixed length value with a positive and a negative signal. This also applies to the zero standard. The catalogue versions cover nominal values up to ±1900 µm and a three-piece set with ±0, ±100 and ±1000 µm. Other nominal values are available on request.
Calibration value and documentation
The exact value of each fictitious probe is stated on the supplied calibration certificate or measurement report, allowing clear assignment and documented periodic checks.
Ballbach calibration service
Ballbach offers calibration according to catalogue item 9000405. DAkkS calibration is available on request within the accredited scope after technical verification.
Article variants
Select the suitable version
| Ballbach item no. | Version | Nominal value | Net price | Details | Inquiry |
|---|---|---|---|---|---|
| 7009001 | Individual standard | ± 0 | €1,899.00 | ||
7009001 – Additional information about this version
|
|||||
| 7009003 | Individual standard | ± 300 | €1,899.00 | ||
7009003 – Additional information about this version
|
|||||
| 7009004 | Individual standard | ± 100 | €1,899.00 | ||
7009004 – Additional information about this version
|
|||||
| 7009005 | Individual standard | ± 190 | €1,899.00 | ||
7009005 – Additional information about this version
|
|||||
| 7009006 | Individual standard | ± 500 | €1,899.00 | ||
7009006 – Additional information about this version
|
|||||
| 7009008 | Individual standard | ± 1000 | €1,899.00 | ||
7009008 – Additional information about this version
|
|||||
| 7009009 | Individual standard | ± 1900 | €1,899.00 | ||
7009009 – Additional information about this version
|
|||||

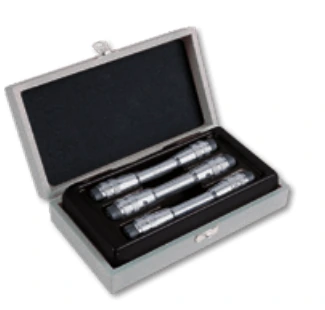

| 7009010 | 3-piece set | ± 0 / ± 100 / ± 1000 | €4,727.00 | ||
7009010 – Additional information about this version
|
|||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
