Zentriergeräte CENTRICATOR CO, CO-S und C III
CENTRICATOR CO, CO-S and C III centring instruments
Precision centring and alignment instruments for machine tools, bores, shafts and edges.
- For horizontal and vertical use
- Centring, alignment and positioning directly on the machine
- CO-S and CO for tasks up to 125 mm
- C III with an extended working range up to 480 mm
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Centring and alignment on machine tools

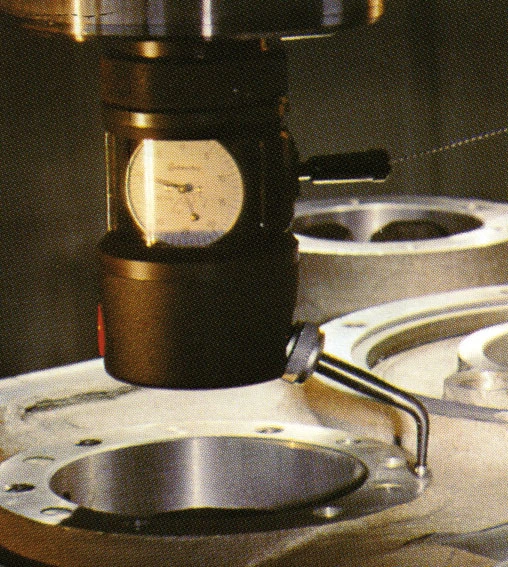

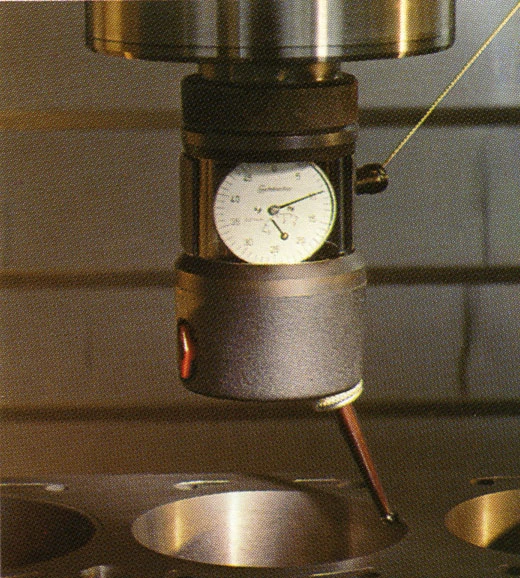

CENTRICATOR instruments help align a machine spindle accurately over bores, pins or shafts. They can also be used to position workpieces on edges, establish perpendicular alignment and determine coordinate dimensions.
High centring accuracy

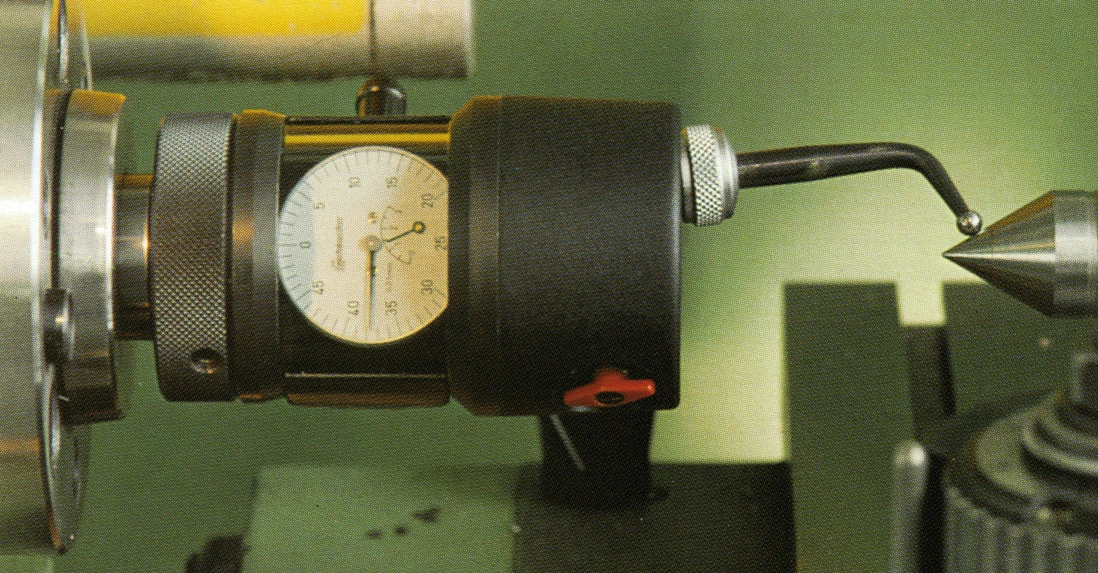

The offset arrangement of the measuring probe makes small positional deviations easy to identify. Horizontal and vertical use provides flexibility for different machine and clamping situations.
The right version for each working range

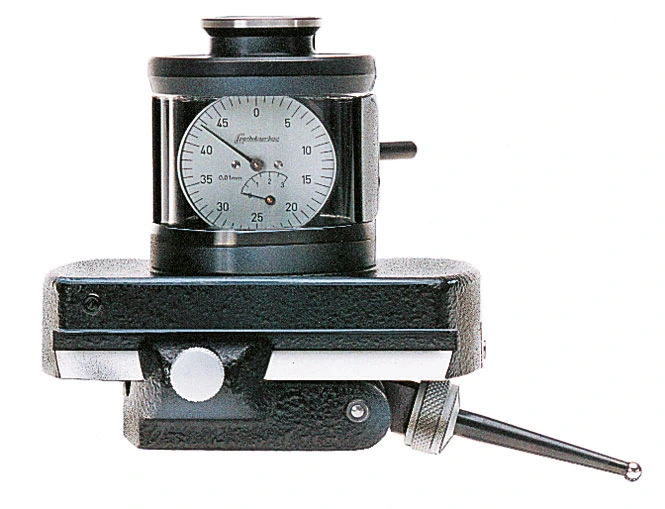

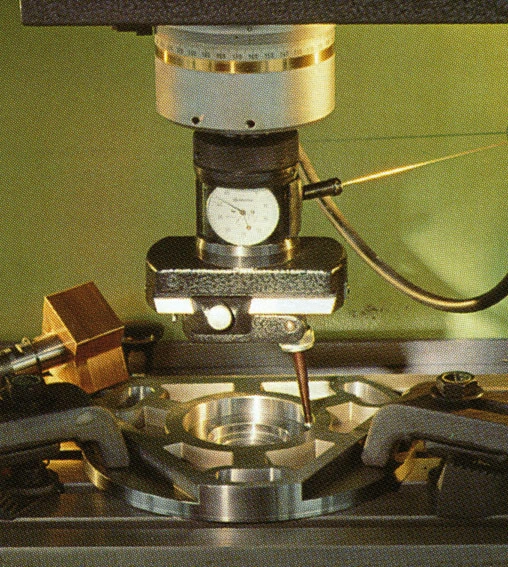

CO-S and CO are intended for compact adjustment tasks up to 125 mm. C III extends the range to 480 mm by means of a radial slide and probe extension. Depending on the model, a fixed clamping shank or interchangeable shanks are available.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Measuring depth | Graduation / resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 4002001 | CO-S | 0,005 mm | €1,495.00 | ||||
4002001 – Additional information about this versionCENTRICATOR CO-S is a version of the CENTRICATOR CO, CO-S and C III centring instruments product family. Technical features: Graduation / resolution: 0,005 mm. |
|||||||
| 4002002 | CO | 0,005 mm | €2,247.00 | ||||
4002002 – Additional information about this versionCENTRICATOR CO is a version of the CENTRICATOR CO, CO-S and C III centring instruments product family. Technical features: Graduation / resolution: 0,005 mm. |
|||||||
| 4002004 | C III | 0,005 mm | €3,403.00 | ||||
4002004 – Additional information about this version
CENTRICATOR C III is a version of the CENTRICATOR CO, CO-S and C III centring instruments product family. Technical features: Graduation / resolution: 0,005 mm. |
|||||||
| 4002005 | C III-S | 0,005 mm | €3,403.00 | ||||
4002005 – Additional information about this version
CENTRICATOR C III-S is a version of the CENTRICATOR CO, CO-S and C III centring instruments product family. Technical features: Graduation / resolution: 0,005 mm. |
|||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
