SCHWENK – Innen-Feinmessgerät ON / ONM
ON / ONM precision bore gauges
Comparative internal gauges for grooves, recesses and measuring positions behind smaller bore entries.
- For grooves and recesses from about 6 to 200 mm
- Expanding probe with large retraction
- ON for a fixed application
- ONM with interchangeable measuring slides
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Measure grooves and recessed diameters

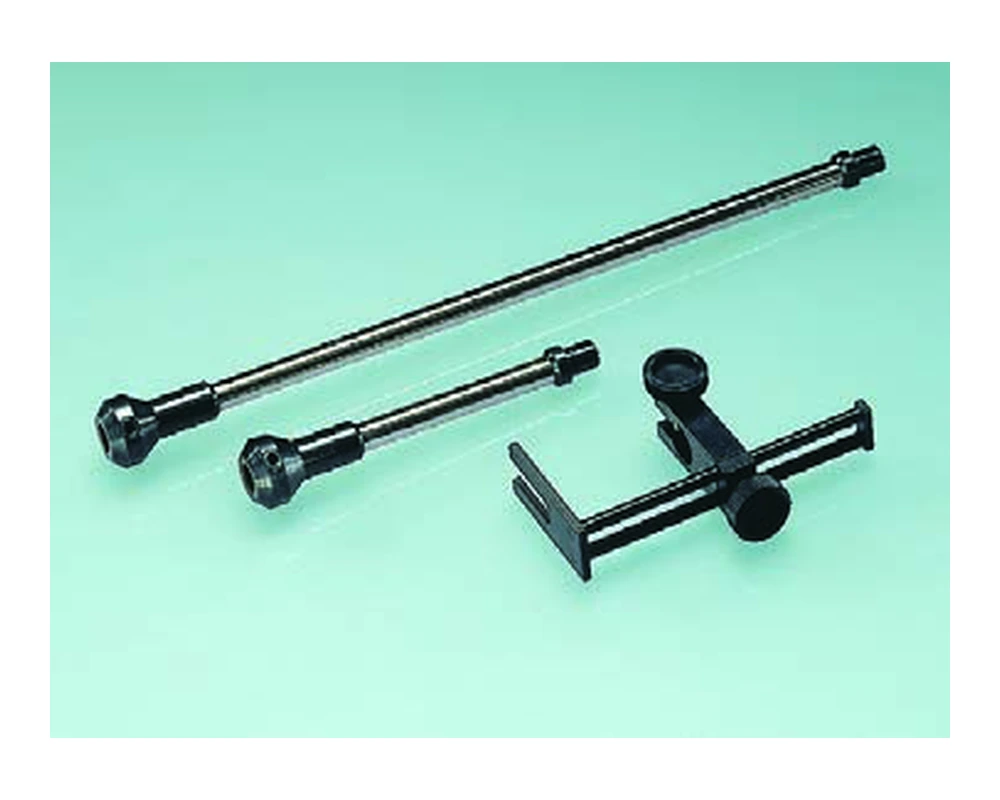

ON and ONM reach grooves, recesses and measuring positions located behind a smaller entry diameter. The expanding probe is inserted in its retracted state and opened at the measuring position.
Large retraction travel
Standard retraction is about 10 mm; for larger diameters, versions with up to 20 mm are possible. This allows substantially recessed contours to be reached safely.
ON for fixed, ONM for changing tasks
ON is configured for a defined application range. ONM is more flexible and uses interchangeable measuring slides for different groove widths and diameters.
Comparative measurement against a reference
Before inspection, the system is referenced with a suitable master or setting device. Deviation from the target geometry is read on a mechanical or electronic indicator.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Measuring depth | Graduation / resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 4072101 | Spreiztaster ON | 6 - 8 | €338.00 | ||||
4072101 – Additional information about this version
Spreiztaster ON, 6–8 mm is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 6 - 8 mm. |
|||||||
| 4072102 | Spreiztaster ON | 8 - 12 | €338.00 | ||||
4072102 – Additional information about this version
Spreiztaster ON, 8–12 mm is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 8 - 12 mm. |
|||||||
| 4072103 | Spreiztaster ON | 10 - 14 | €302.00 | ||||
4072103 – Additional information about this version
Spreiztaster ON, 10–14 mm is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 10 - 14 mm. |
|||||||
| 4072104 | Spreiztaster ON | 12 - 18 | €302.00 | ||||
4072104 – Additional information about this version
Spreiztaster ON, 12–18 mm is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 12 - 18 mm. |
|||||||
| 4072105 | Spreiztaster ON | 16 - 22 | €302.00 | ||||
4072105 – Additional information about this version
Spreiztaster ON, 16–22 mm is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 16 - 22 mm. |
|||||||
| 4072201 | Spreiztaster ONM | 20 - 55 | €366.00 | ||||
4072201 – Additional information about this version
Spreiztaster ONM, 20–55 mm / 10 mm Weg is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 20 - 55 mm. |
|||||||
| 4072202 | Spreiztaster ONM | 45 - 200 | €433.00 | ||||
4072202 – Additional information about this version
Spreiztaster ONM, 45–200 mm / 10 mm Weg is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 45 - 200 mm. |
|||||||
| 4072203 | Spreiztaster ONM | 45 - 200 | €496.00 | ||||
4072203 – Additional information about this version
Spreiztaster ONM, 45–200 mm / 20 mm Weg is a version of the ON / ONM precision bore gauges product family. Technical features: Measuring range: 45 - 200 mm. |
|||||||
