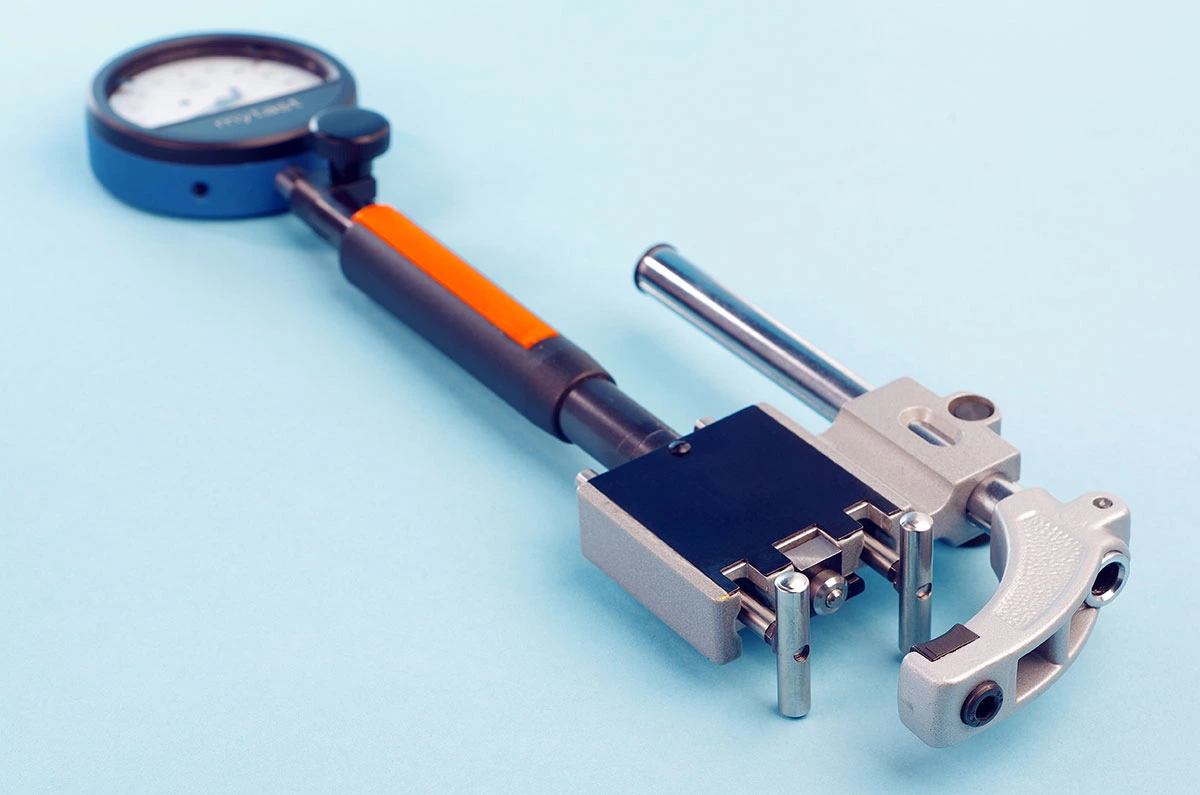

SCHWENK – SUBITO SL Innen-Feinmessgeräte
SUBITO SL precision bore gauges
Bore gauges for bores with a central obstruction or restricted access.
- Measures around boring bars and central obstructions
- Depending on version up to 500 mm
- Shallow measuring depth of about 12 to 30 mm
- Self-centring guidance with fixed and movable elements
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description

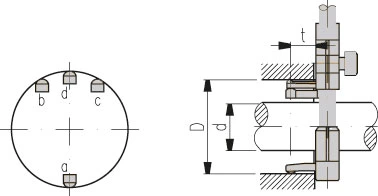

Measure despite a central obstruction
SUBITO SL is designed for bores where a central obstruction restricts access, for example an inserted boring bar. Its laterally arranged measuring mechanism reaches the bore wall without requiring a clear centre.
Reliable centring
A fixed jaw works with two movable centring fingers and a measuring jaw. This arrangement guides the instrument securely and supports repeatable two-point measurement.
Shallow positions and large diameters
Depending on size, measuring depth is approximately 12 to 30 mm. Available versions cover large diameters and reach up to 500 mm depending on the model.
Setting with a suitable master
Before use, the instrument is referenced with a setting ring or suitable master. Deviations from nominal size can then be read directly on the selected indicator.

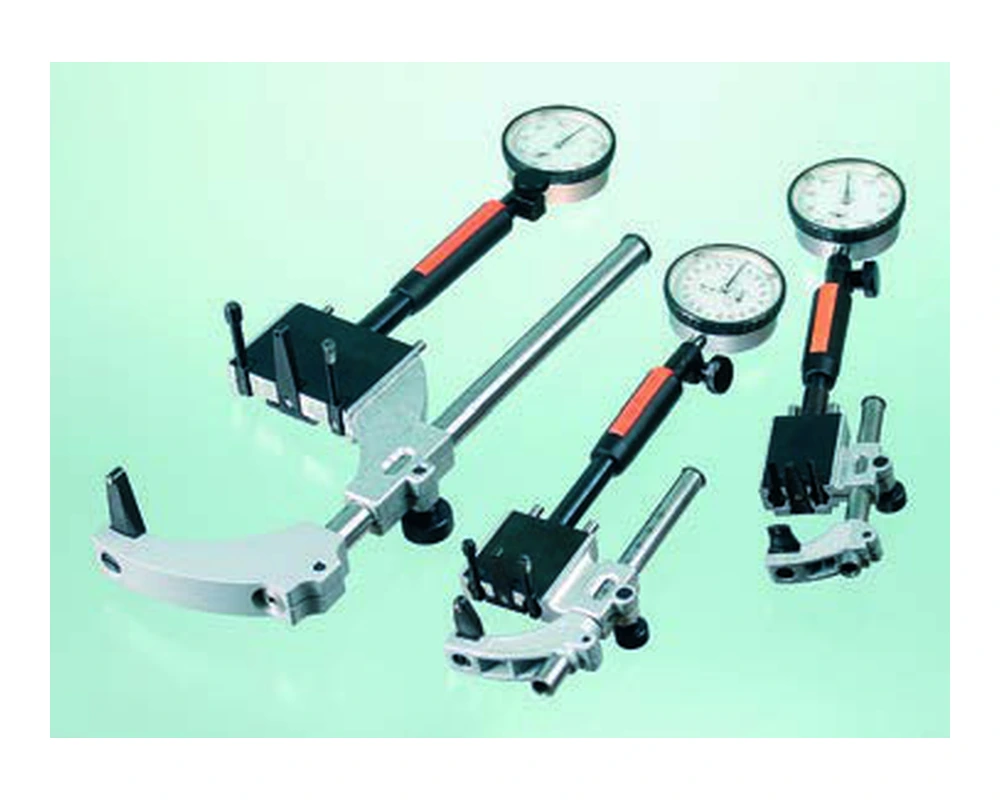

Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Measuring depth | Graduation / resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 4069001 | SL | 25 - 70 | Price on request | ||||
4069001 – Additional information about this version
SUBITO SL 25–70 mm is a version of the SUBITO SL precision bore gauges product family. Technical features: Measuring range: 25 - 70 mm. |
|||||||
| 4069002 | SL | 35 - 105 | €2,007.00 | ||||
4069002 – Additional information about this version
SUBITO SL 35–105 mm is a version of the SUBITO SL precision bore gauges product family. Technical features: Measuring range: 35 - 105 mm. |
|||||||
| 4069003 | SL | 100 - 210 | €2,566.00 | ||||
4069003 – Additional information about this version
SUBITO SL 100–210 mm is a version of the SUBITO SL precision bore gauges product family. Technical features: Measuring range: 100 - 210 mm. |
|||||||
| 4069004 | SL | 100 - 280 | €3,178.00 | ||||
4069004 – Additional information about this version
SUBITO SL 100–280 mm is a version of the SUBITO SL precision bore gauges product family. Technical features: Measuring range: 100 - 280 mm. |
|||||||
| 4069005 | SL | 200 - 500 | €3,597.00 | ||||
4069005 – Additional information about this version
SUBITO SL 200–500 mm is a version of the SUBITO SL precision bore gauges product family. Technical features: Measuring range: 200 - 500 mm. |
|||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
