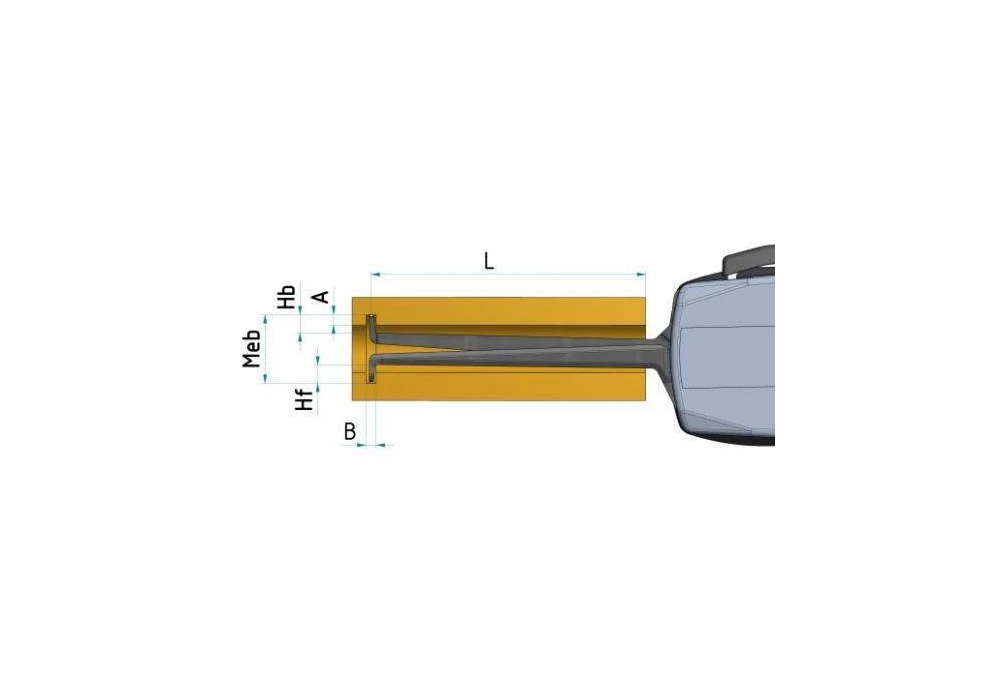

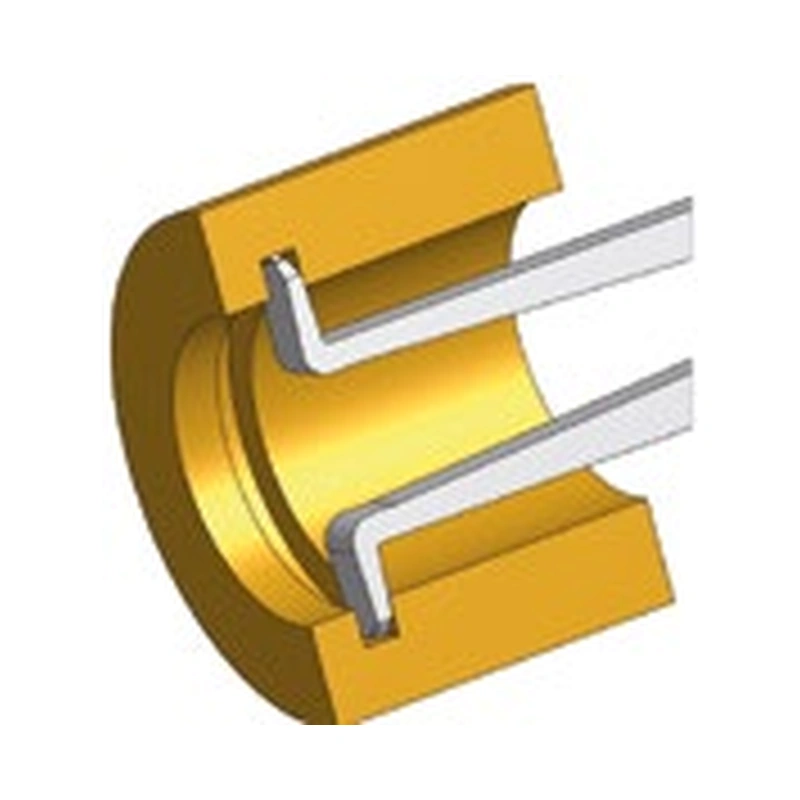

Anwendung Innenmessung

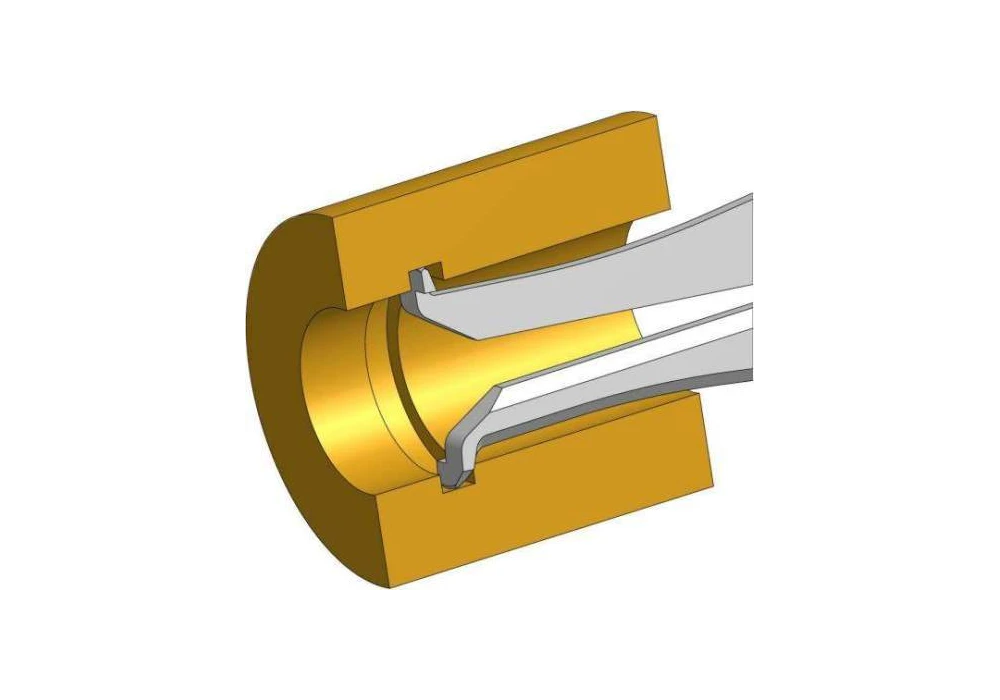

Schneiden-Messkontakt
Kroeplin – Elektronische Schnelltaster für Innenmessung
Electronic quick gauges for internal measurement
Electronic quick gauges for bore and groove measurements with selectable resolution.
- For rapid comparative and series measurements
- Measuring range: 2.5–100 mm
- Measuring span: 10–20 mm
- Graduation / resolution: 0.005–0.01 mm
- Choice of 10 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Electronic quick gauges for bore and groove measurements with selectable resolution.
Quick gauges transfer the measuring movement to an analogue or electronic display and enable rapid comparative measurements. The spring-loaded mechanism supports repeated inspection in production and incoming goods.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 2.5–100 mm
- Measuring span: 10–20 mm
- Graduation / resolution: 0.005–0.01 mm
- Choice of 10 versions
Typical applications
Typical tasks include rapid external and internal comparative measurements, wall-thickness checks and series inspection. Design, measuring direction, contact shape and the required display determine the suitable version.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements. For suitable instruments, we also provide repair and spare-parts service.
Article variants
Select the suitable version
| Ballbach item no. | Instrument type | Measuring range | Measuring span | Graduation / resolution | Measuring depth | Measuring contact | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|

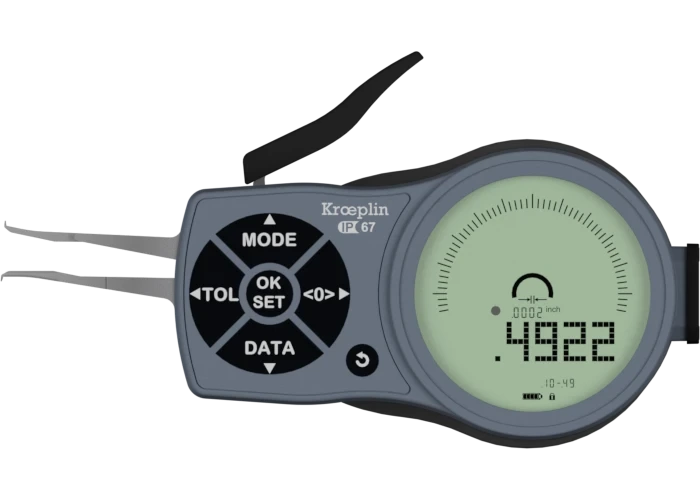

| 3317101 | L102 | 2,5-12,5 | 10 | 0,005 | 35 | blade R 0,1 | €484.00 | ||
3317101 – Additional information about this version
Messkontakt-Form: Schneide R 0,1 Quick gauge L102, measuring range 2,5-12,5 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 2,5-12,5 mm; Measuring span: 10 mm; Graduation / resolution: 0,005 mm; Measuring depth: 35 mm.
|
|||||||||

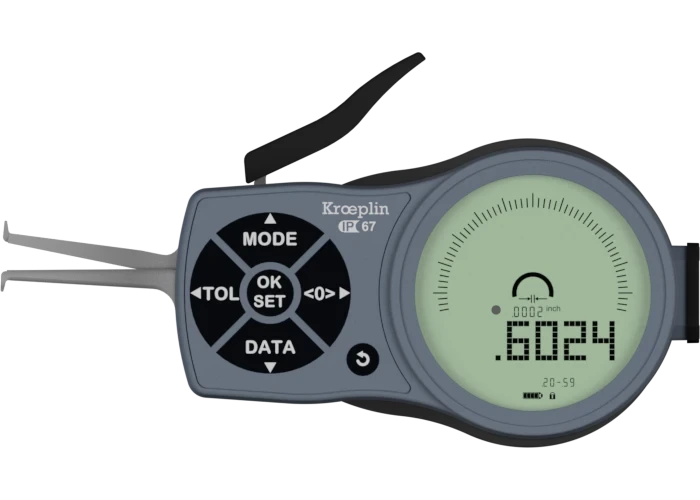

| 3317102 | L105 | 5-15 | 10 | 0,005 | 35 | carbide ball Ø 0,6 | €484.00 | ||
3317102 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 0,6 Quick gauge L105, measuring range 5-15 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 5-15 mm; Measuring span: 10 mm; Graduation / resolution: 0,005 mm; Measuring depth: 35 mm.
|
|||||||||

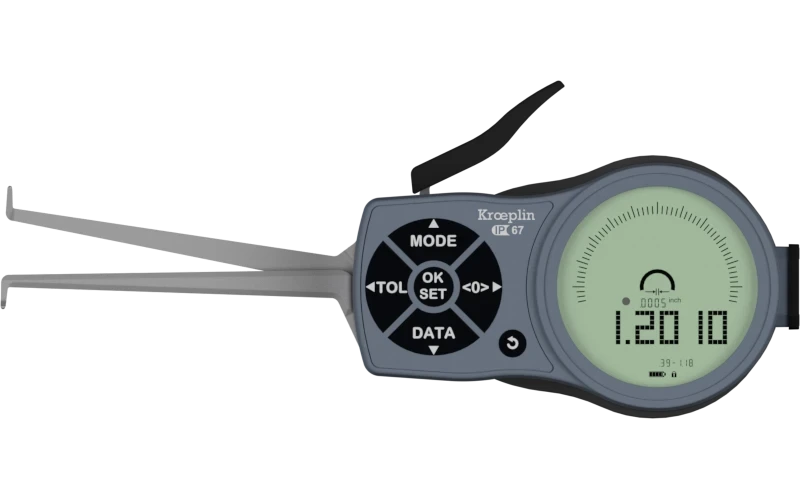

| 3317103 | L210 | 10-30 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317103 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L210, measuring range 10-30 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 10-30 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||
| 3317104 | L220 | 20-40 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317104 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L220, measuring range 20-40 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 20-40 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||

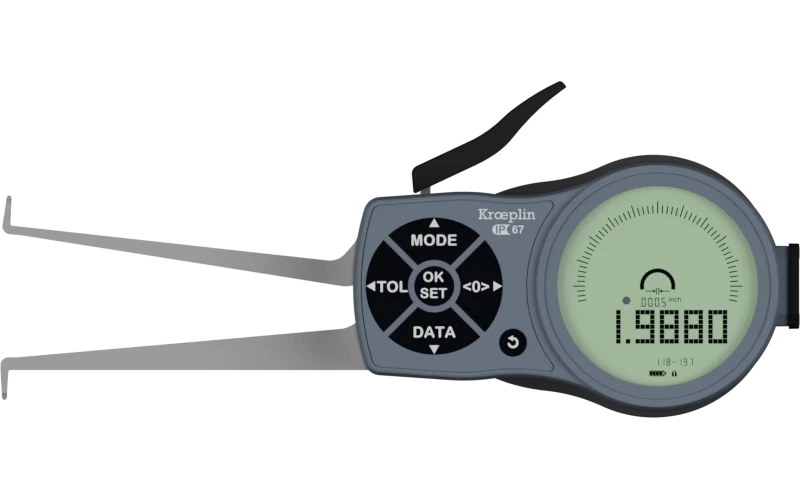

| 3317105 | L230 | 30-50 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317105 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L230, measuring range 30-50 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 30-50 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||
| 3317106 | L240 | 40-60 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317106 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L240, measuring range 40-60 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 40-60 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||

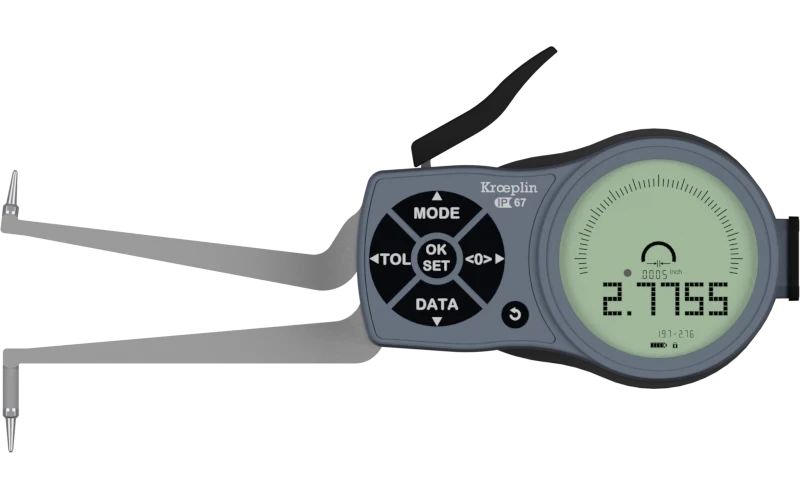

| 3317107 | L250 | 50-70 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317107 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L250, measuring range 50-70 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 50-70 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||

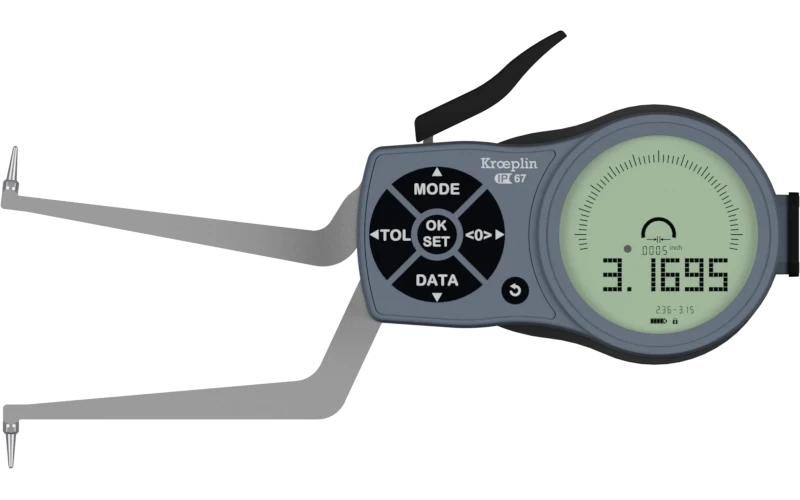

| 3317108 | L260 | 60-80 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317108 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L260, measuring range 60-80 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 60-80 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||

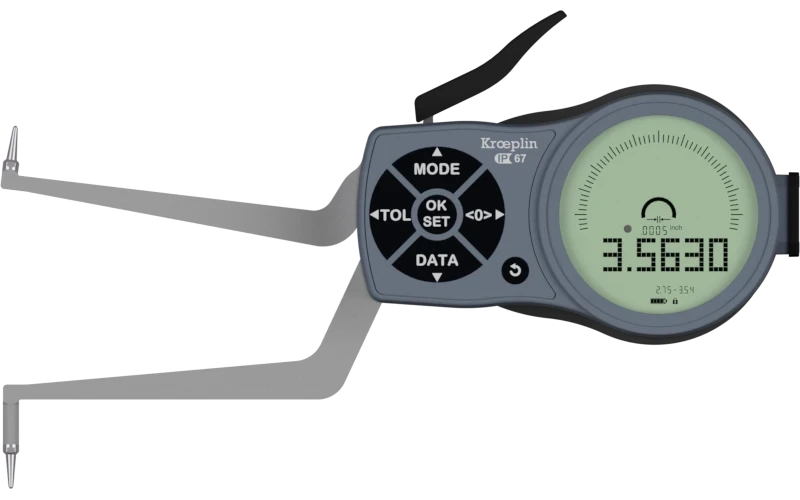

| 3317109 | L270 | 70-90 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317109 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L270, measuring range 70-90 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 70-90 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||

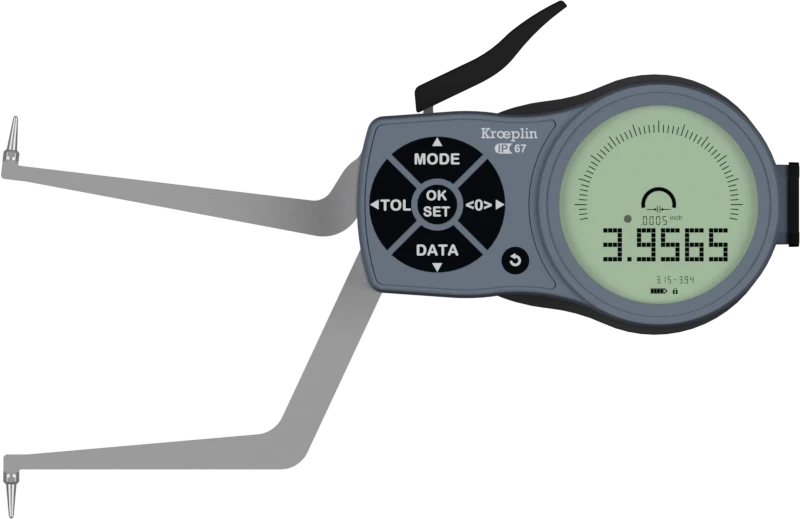

| 3317110 | L280 | 80-100 | 20 | 0,01 | 85 | carbide ball Ø 1 | €484.00 | ||
3317110 – Additional information about this version
Messkontakt-Form: HM-Kugel Ø 1 Quick gauge L280, measuring range 80-100 mm is a version of the Electronic quick gauges for internal measurement product family. Technical features: Measuring range: 80-100 mm; Measuring span: 20 mm; Graduation / resolution: 0,01 mm; Measuring depth: 85 mm.
|
|||||||||
