TESA µ-HITE
Professional product family for dimensional inspection, workshop and laboratory applications.
- Compact motorised measuring station for small workpieces and high-precision comparative measurements.
- 100 mm span with axial and radial measurement
- Coaxial measurement according to Abbe principle
- Error limit 1 µm axial and 2 µm radial
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Applications and measuring tasks
TESA µ-HITE is designed for small workpieces, low measuring forces and high-precision comparative measurement. It measures external, internal, height, depth, step and distance features and automatically detects reversal points. Depending on setup it also checks straightness, flatness, parallelism and runout.
Measuring system and technical design

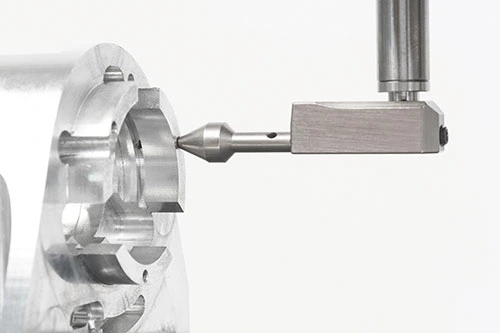

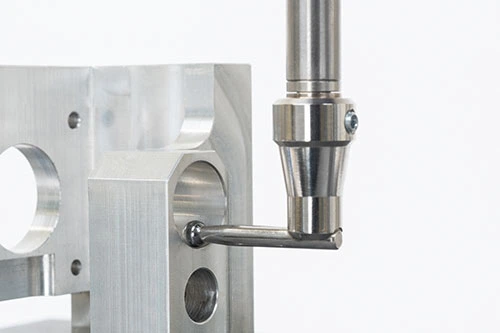

The motorised head measures axially and coaxially according to Abbe or radially offset. Span is 100 mm with a 1 µm axial and 2 µm radial error limit. Repeatability, temperature sensor and selectable force support reliable results.
Operation, evaluation and data output

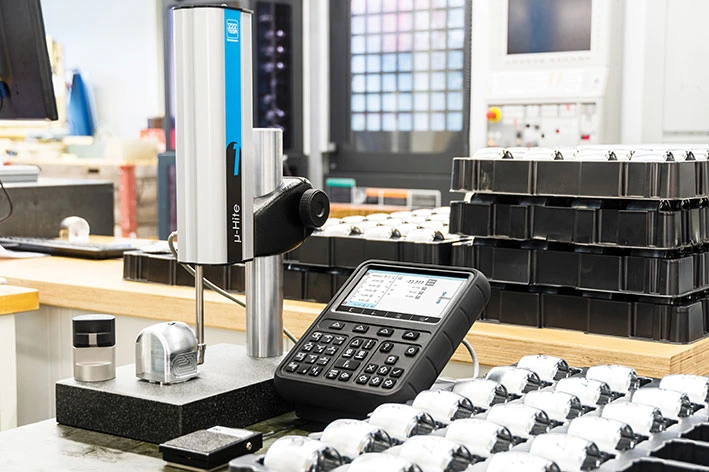

The Power Panel offers memory, max/min/range functions and automatic value capture at stable force. USB and TLC-Twin interfaces transfer results, while three motor speeds support sensitive or fast probing.
Versions, accessories and Ballbach service

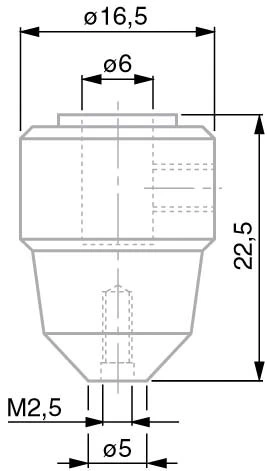

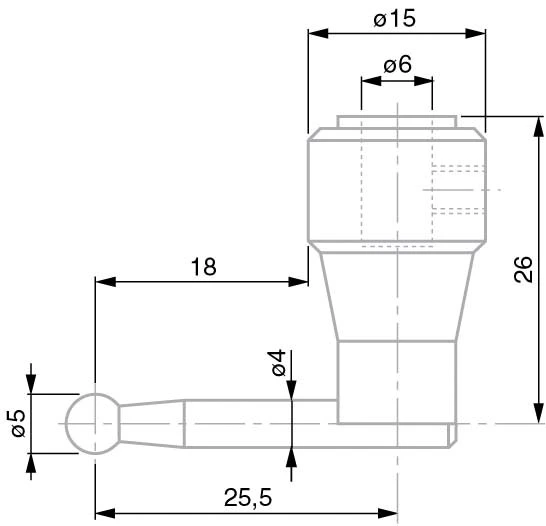

Complete system 5060002 includes panel, granite table, axial and radial inserts, reference and accessories. Family 5061 contains holders, inserts and foot switch. Ballbach provides advice, repair and calibration.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring span / application range | Technical features | Resolution | Error limit / repeatability | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|
| 5060002 | TESA µ-HITE + Power-Panel | 100 mm | 0,001 / 0,0001 mm | Axial 1 µm / radial 2 µm · Wiederholung ≤ 0,5 / ≤ 1 µm | €6,151.00 | |||
5060002 – Additional information about this version100 mm Messspanne · komplettes Messsystem |
||||||||
