Mitutoyo – Serie 568
ABS Borematic rapid bore gauges
Digital Mitutoyo ABS Borematic rapid three-point bore gauges with rotating display and tolerance judgement for 6 to 125 mm.
- Fast self-centring three-point measurement
- Measuring ranges from 6 to 125 mm
- 0.001 mm resolution and 330° rotating display
- GO/NG tolerance judgement and data output
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Rapid gauge for bore inspection
ABS Borematic is designed for fast inspection. The spring-loaded measuring action and self-centring three-point arrangement allow quick insertion, measurement and reading, especially during recurring production checks.
Clear rotating display
The digital display rotates through up to 330° and can be adapted to the working position. The large LCD shows the result with 0.001 mm resolution.
Direct tolerance assessment
The GO/NG function compares the displayed value directly with preset tolerance limits. Results can be transferred through the data output for documentation and quality analysis.
Blind-bore measurement and durable contacts
The heads are designed for measurement close to the bottom of a bore. Titanium-coated contacts improve wear resistance. Suitable setting rings are used for secure presetting; Ballbach provides advice, calibration and repair.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 2523501 | Sacklochausführung mit Datenausgang | 6-8 mm | 0,001 mm | €1,405.00 | ||
2523501 – Additional information about this versionABS Borematic 6-8 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 6-8 mm; Resolution: 0,001 mm.
|
||||||
| 2523502 | Sacklochausführung mit Datenausgang | 8-10 mm | 0,001 mm | €1,405.00 | ||
2523502 – Additional information about this versionABS Borematic 8-10 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 8-10 mm; Resolution: 0,001 mm.
|
||||||
| 2523503 | Sacklochausführung mit Datenausgang | 10-12 mm | 0,001 mm | €1,405.00 | ||
2523503 – Additional information about this versionABS Borematic 10-12 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 10-12 mm; Resolution: 0,001 mm.
|
||||||
| 2523504 | Sacklochausführung mit Datenausgang | 12-16 mm | 0,001 mm | €1,434.00 | ||
2523504 – Additional information about this versionABS Borematic 12-16 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 12-16 mm; Resolution: 0,001 mm.
|
||||||
| 2523505 | Sacklochausführung mit Datenausgang | 16-20 mm | 0,001 mm | €1,434.00 | ||
2523505 – Additional information about this versionABS Borematic 16-20 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 16-20 mm; Resolution: 0,001 mm.
|
||||||
| 2523506 | Sacklochausführung mit Datenausgang | 20-25 mm | 0,001 mm | €1,528.00 | ||
2523506 – Additional information about this versionABS Borematic 20-25 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 20-25 mm; Resolution: 0,001 mm.
|
||||||
| 2523507 | Sacklochausführung mit Datenausgang | 25-30 mm | 0,001 mm | €1,528.00 | ||
2523507 – Additional information about this versionABS Borematic 25-30 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 25-30 mm; Resolution: 0,001 mm.
|
||||||
| 2523508 | Sacklochausführung mit Datenausgang | 30-40 mm | 0,001 mm | €1,659.00 | ||
2523508 – Additional information about this versionABS Borematic 30-40 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 30-40 mm; Resolution: 0,001 mm.
|
||||||
| 2523509 | Sacklochausführung mit Datenausgang | 40-50 mm | 0,001 mm | €1,659.00 | ||
2523509 – Additional information about this versionABS Borematic 40-50 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 40-50 mm; Resolution: 0,001 mm.
|
||||||
| 2523510 | Sacklochausführung mit Datenausgang | 50-63 mm | 0,001 mm | €1,733.00 | ||
2523510 – Additional information about this versionABS Borematic 50-63 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 50-63 mm; Resolution: 0,001 mm.
|
||||||
| 2523511 | Sacklochausführung mit Datenausgang | 62-75 mm | 0,001 mm | €1,768.00 | ||
2523511 – Additional information about this versionABS Borematic 62-75 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 62-75 mm; Resolution: 0,001 mm.
|
||||||
| 2523512 | Sacklochausführung mit Datenausgang | 75-88 mm | 0,001 mm | €1,825.00 | ||
2523512 – Additional information about this versionABS Borematic 75-88 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 75-88 mm; Resolution: 0,001 mm.
|
||||||
| 2523513 | Sacklochausführung mit Datenausgang | 87-100 mm | 0,001 mm | €1,825.00 | ||
2523513 – Additional information about this versionABS Borematic 87-100 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 87-100 mm; Resolution: 0,001 mm.
|
||||||
| 2523514 | Sacklochausführung mit Datenausgang | 100-113 mm | 0,001 mm | €1,933.00 | ||
2523514 – Additional information about this versionABS Borematic 100-113 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 100-113 mm; Resolution: 0,001 mm.
|
||||||
| 2523515 | Sacklochausführung mit Datenausgang | 113-125 mm | 0,001 mm | €1,964.00 | ||
2523515 – Additional information about this versionABS Borematic 113-125 mm is a version of the ABS Borematic rapid bore gauges product family. Technical features: Measuring range: 113-125 mm; Resolution: 0,001 mm.
|
||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions

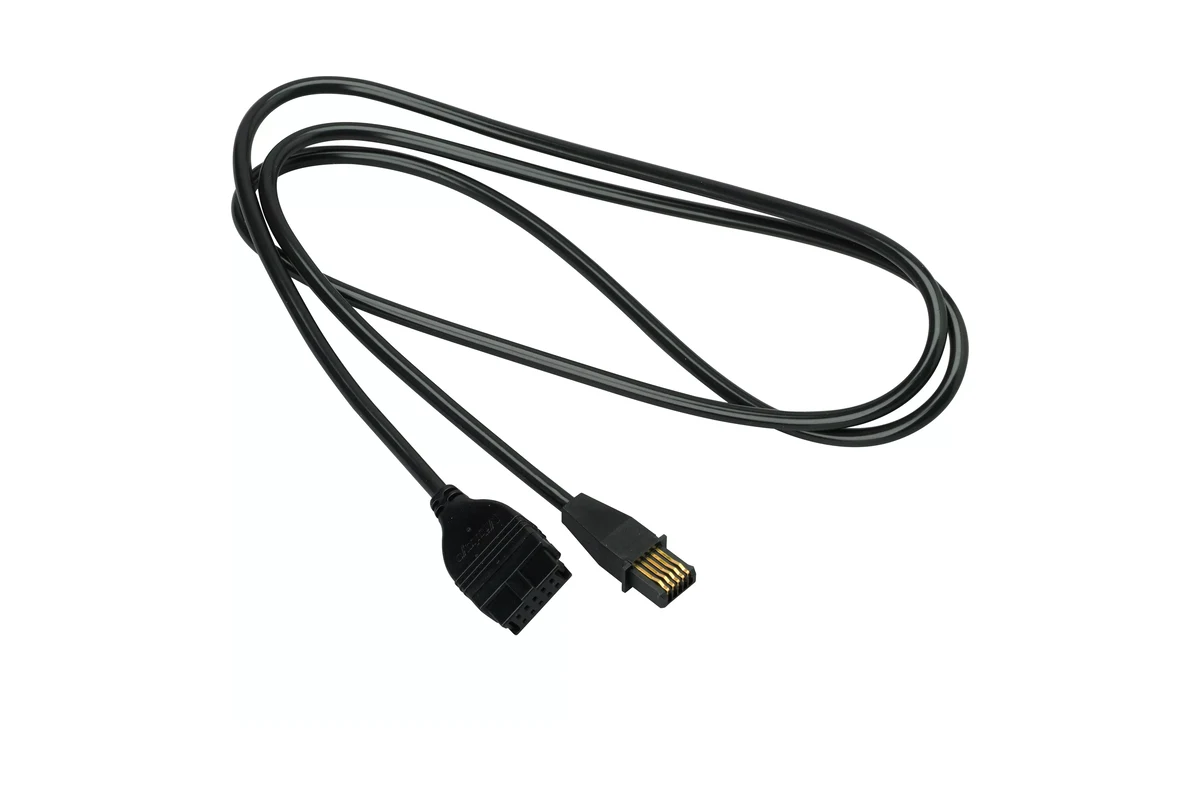

Digimatic cable 1 m, flat straight
Digimatic cable 1 m, flat straight is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2523590

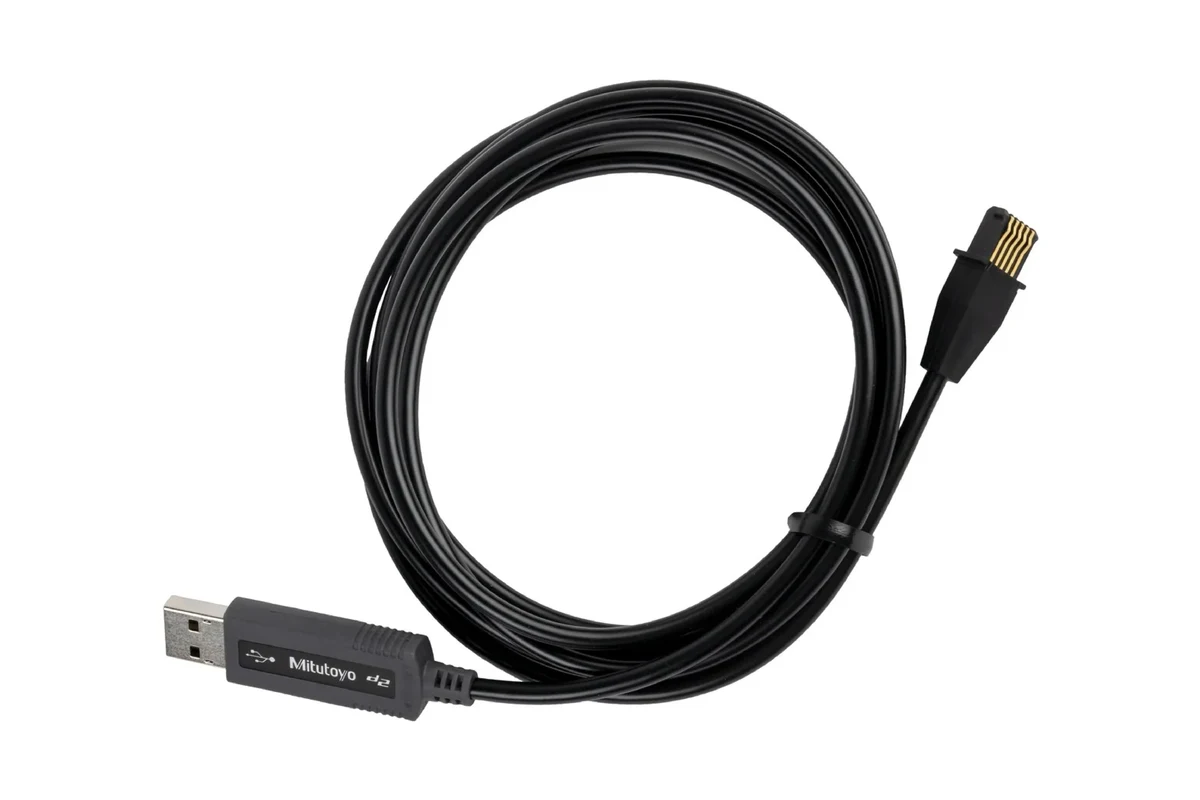

Digimatic USB cable 2 m, flat straight
Digimatic USB cable 2 m, flat straight is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2523592
