Mitutoyo – QuantuMike
Mitutoyo QuantuMike

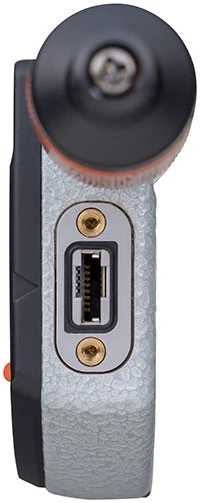

Fast IP65 outside micrometer with 2 mm spindle feed per thimble revolution and Digimatic S1 interface.
- For repeatable precision measurements with defined measuring geometry
- Measuring range: 0–100 mm
- Scale division / resolution: 0.001 mm
- Protection rating: IP65
- Choice of 4 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Fast IP65 outside micrometer with 2 mm spindle feed per thimble revolution and Digimatic S1 interface.
Micrometers use a finely guided spindle and controlled actuation. This makes them suitable for repeatable external, thickness and special measurements with a clearly defined measuring geometry.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 0–100 mm
- Scale division / resolution: 0.001 mm
- Protection rating: IP65
- Choice of 4 versions
Typical applications
Depending on contact faces and design, the product families cover standard external dimensions, wall thicknesses, grooves, gears, threads and series inspection. Reliable results require the measuring range and geometry to match the workpiece.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements. For suitable instruments, we also provide repair and spare-parts service. A suitable factory calibration can be supplied together with the instrument. DAkkS calibration is available on request where the measurand and version are within the accredited scope.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Scale division / resolution | Error limit | Protection rating | Data output | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 2036601 | Mit Datenausgang | 0 - 25 | 0,001 mm | ± 1 µm | IP65 | Digimatic S1 | €380.00 | ||
2036601 – Additional information about this versionMitutoyo QuantuMike 0-25 mm is a version of the Mitutoyo QuantuMike product family. Technical features: Measuring range: 0 - 25 mm; Scale division / resolution: 0,001 mm; Protection rating: IP65.
|
|||||||||
| 2036602 | Mit Datenausgang | 25 - 50 | 0,001 mm | ± 1 µm | IP65 | Digimatic S1 | €468.00 | ||
2036602 – Additional information about this versionMitutoyo QuantuMike 25-50 mm is a version of the Mitutoyo QuantuMike product family. Technical features: Measuring range: 25 - 50 mm; Scale division / resolution: 0,001 mm; Protection rating: IP65.
|
|||||||||
| 2036603 | Mit Datenausgang | 50 - 75 | 0,001 mm | ± 2 µm | IP65 | Digimatic S1 | €556.00 | ||
2036603 – Additional information about this versionMitutoyo QuantuMike 50-75 mm is a version of the Mitutoyo QuantuMike product family. Technical features: Measuring range: 50 - 75 mm; Scale division / resolution: 0,001 mm; Protection rating: IP65.
|
|||||||||
| 2036604 | Mit Datenausgang | 75 - 100 | 0,001 mm | ± 2 µm | IP65 | Digimatic S1 | €628.00 | ||
2036604 – Additional information about this versionMitutoyo QuantuMike 75-100 mm is a version of the Mitutoyo QuantuMike product family. Technical features: Measuring range: 75 - 100 mm; Scale division / resolution: 0,001 mm; Protection rating: IP65.
|
|||||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions

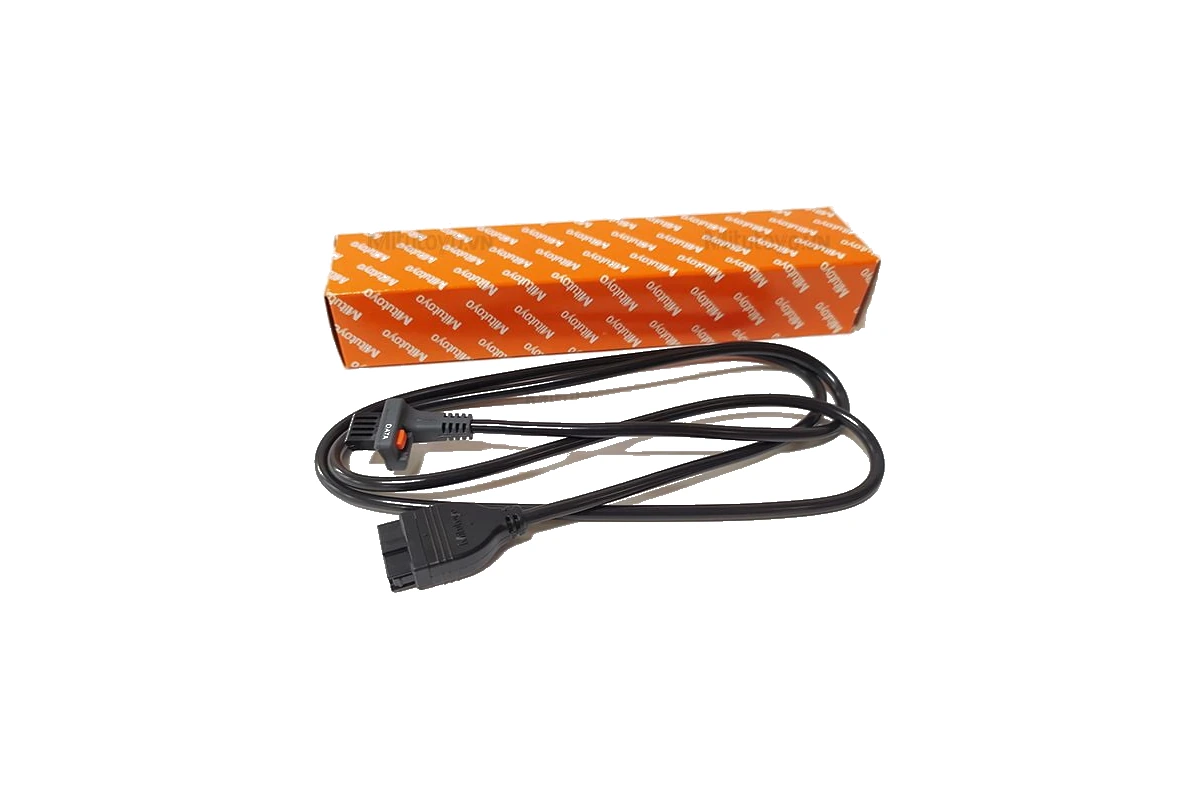

Digimatic-S1-Kabel 1 m mit Sendetaste
Digimatic-S1-Kabel 1 m mit Sendetaste is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2036921
Digimatic-S1-Kabel 2 m mit Sendetaste
Digimatic-S1-Kabel 2 m mit Sendetaste is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2036922

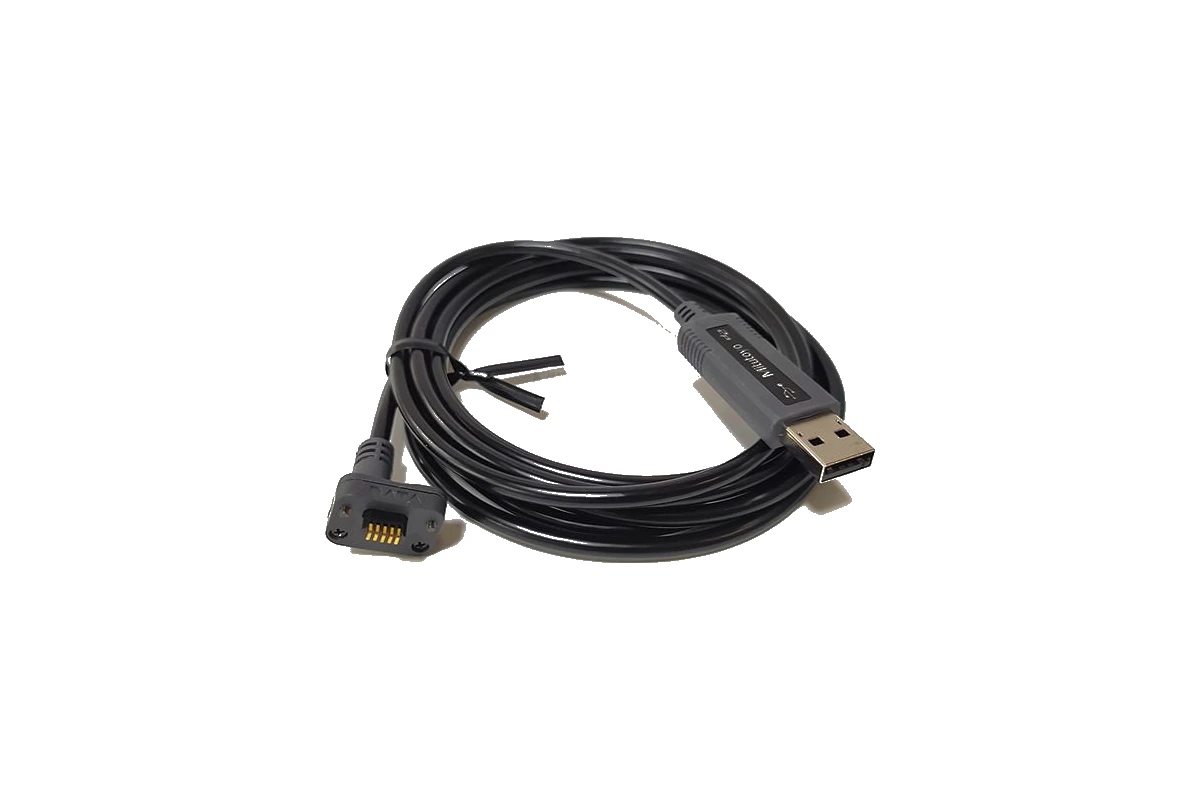

Digimatic-S1-USB-Kabel Typ C, 2 m
Digimatic-S1-USB-Kabel Typ C, 2 m is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2036923

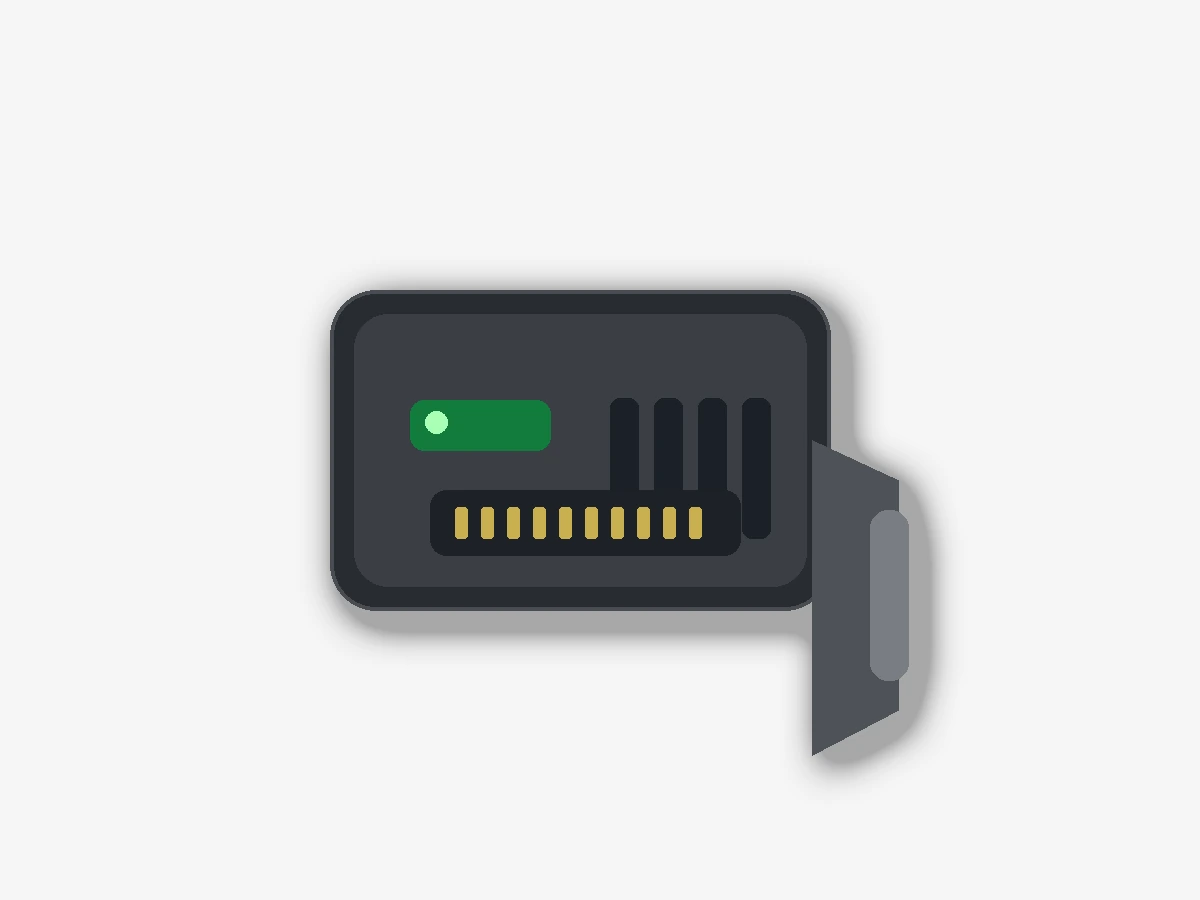

U-WAVE fit Bluetooth Anschlusseinheit
U-WAVE fit Bluetooth Anschlusseinheit is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2036924

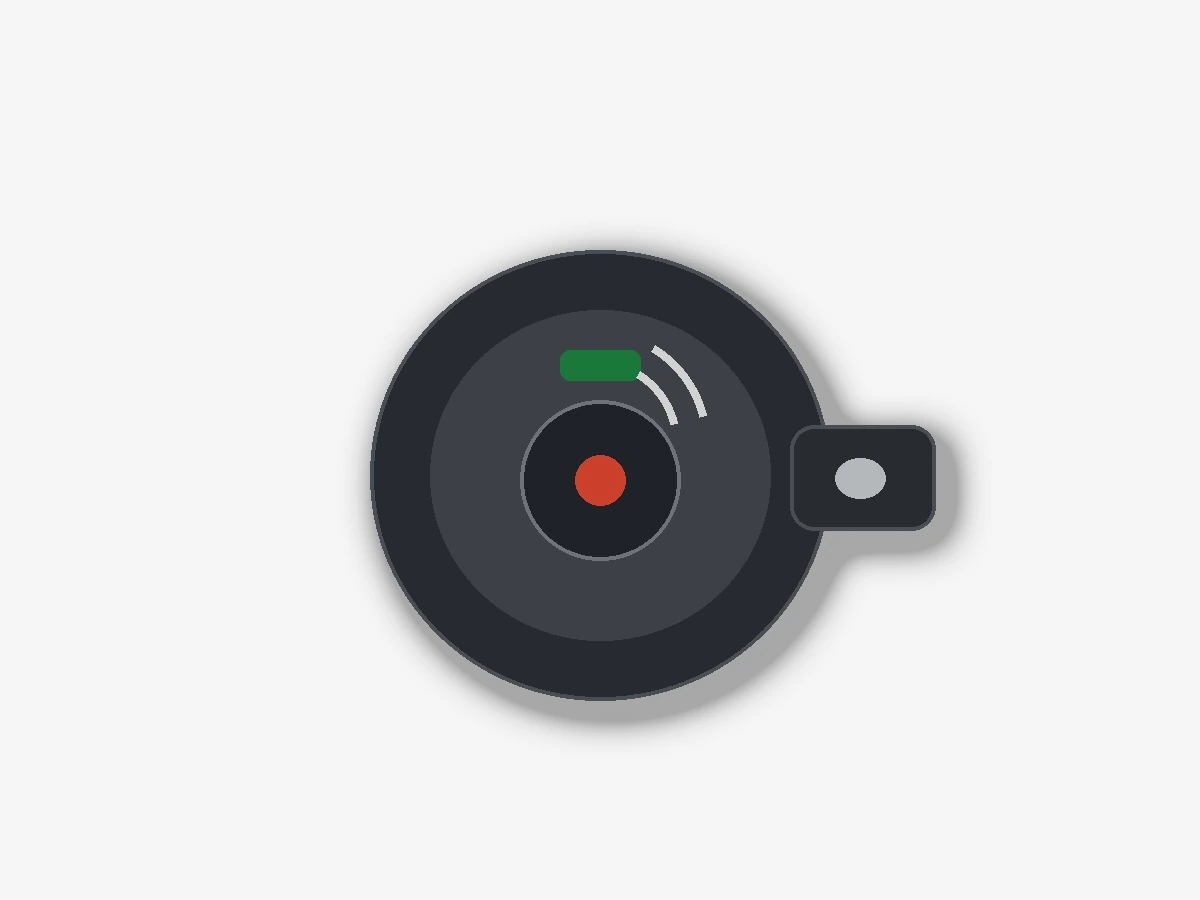

Bluetooth Sender U-WAVE-TMB
Bluetooth Sender U-WAVE-TMB is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2036925
