Mitutoyo – Serie 192
Mitutoyo Series 192 height gauge with dial
Mechanical height gauge with double counter and dial for direct, reliable reading.
- Mechanical height gauge with double counter and dial for direct, reliable reading.
- Independent upward and downward counters
- Dial displays tenths and hundredths
- Carbide-tipped scriber included
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and operating principle
The Series 192 is used for measuring and scribing heights on a surface plate. Two mechanical counters show upward and downward travel independently, while the dial displays the final decimal places.

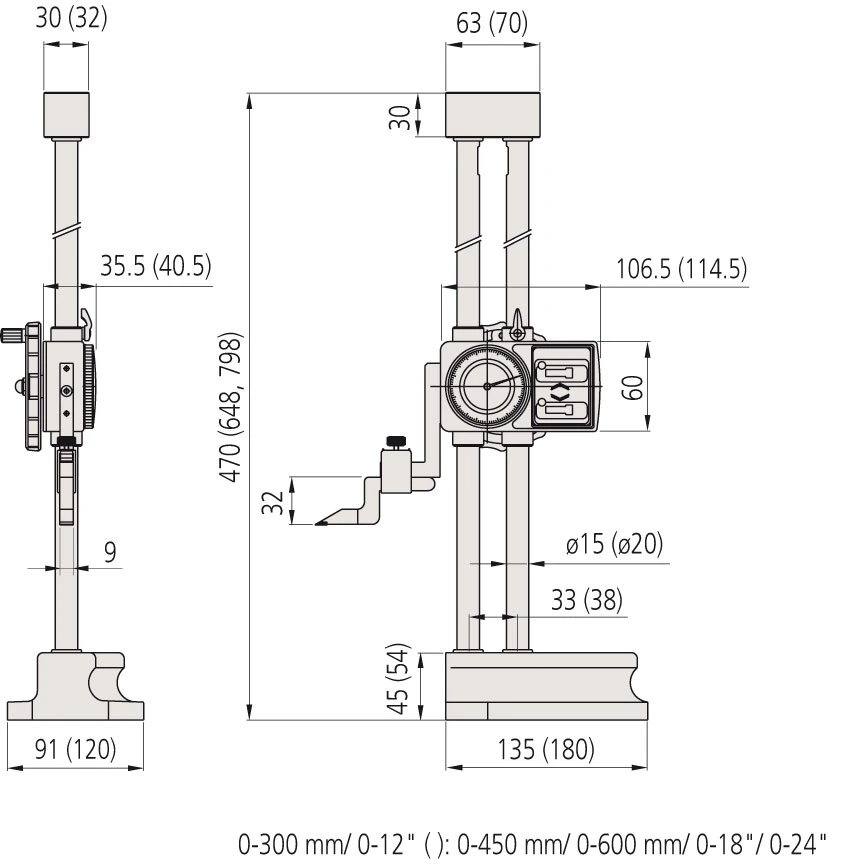

Design
The dual-column construction provides stable guidance. A large feed wheel allows convenient carriage positioning, and the displays can be set to zero at any scriber position.
Measuring ranges and accuracy
The family covers 300, 450, 600 and 1000 mm. Resolution is 0.01 mm; maximum permissible error depends on measuring range and is shown in the table.
Accessories
Carbide scriber, holder, clamping shank and swivel clamp are assigned to the family and displayed after the gauges.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution / graduation | Base size / design | Maximum permissible error | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|
| 5003001 | Mit doppeltem Zählwerk und Messuhr | 0 – 300 | 0,01 | Doppelsäulen-Design | ±3 µm | €729.00 | ||
5003001 – Additional information about this versionMessbereich 0 – 300 mm · 0,01 mm · ±3 µm |
||||||||
| 5003002 | 0,01 | Doppelsäulen-Design | ±5 µm | €1,047.00 | ||||
5003002 – Additional information about this versionMessbereich 0 – 450 mm · 0,01 mm · ±5 µm |
||||||||
| 5003003 | Mit doppeltem Zählwerk und Messuhr | 0 – 600 | 0,01 | Doppelsäulen-Design | ±5 µm | €1,260.00 | ||
5003003 – Additional information about this versionMessbereich 0 – 600 mm · 0,01 mm · ±5 µm |
||||||||
| 5003004 | Mit doppeltem Zählwerk und Messuhr | 0 – 1000 | 0,01 | Doppelsäulen-Design | ±7 µm | €2,310.00 | ||
5003004 – Additional information about this versionMessbereich 0 – 1000 mm · 0,01 mm · ±7 µm |
||||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
Hartmetallbestückte Anreißnadel
9 x 9 mm; Länge 80 mm
Ballbach item no. 5003101
Halterung für Anreißnadel
Passend zu Serie 192 / 570
Ballbach item no. 5003102
Einspannschaft für Schwenkklemme
9 x 9 mm; Länge 50 mm
Ballbach item no. 5003103
Schwenkklemme
Für Ø 4/8 mm; Schwalbenschwanz
Ballbach item no. 5003104
