Sine angle setting device
Magnetic precision device for setting any angle from 0 to 90° with gauge blocks.
- Magnetic precision device for setting any angle from 0 to 90° with gauge blocks.
- 100 mm sine length, setting range 0 to 90°
- Hardened steel with ground and lapped faces
- Two magnetic support faces
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and selection

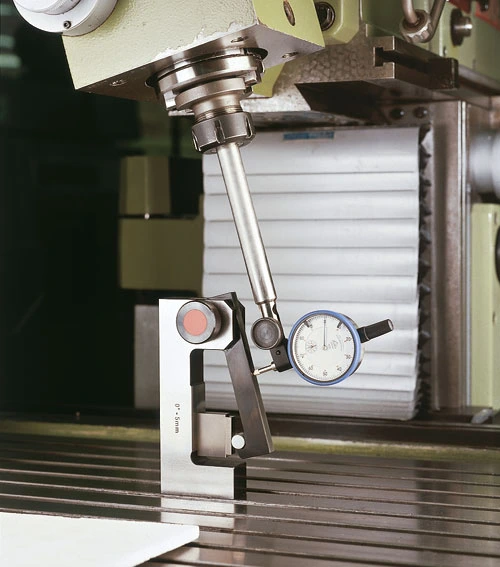

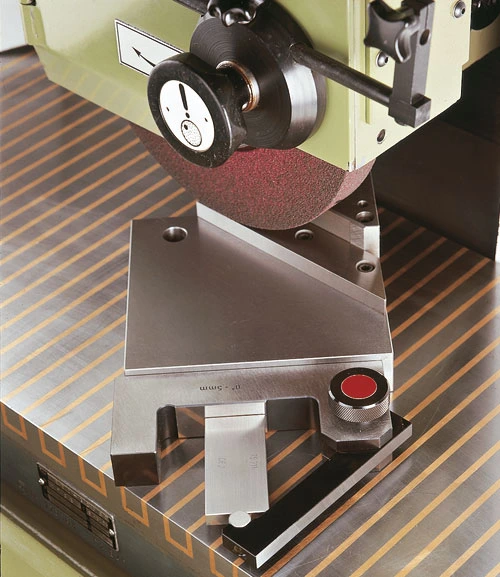

Using the supplied sine table and suitable gauge blocks, the device can be set to any angle between 0 and 90°. It is suitable for machine tools, assembly and inspection.
Technical design

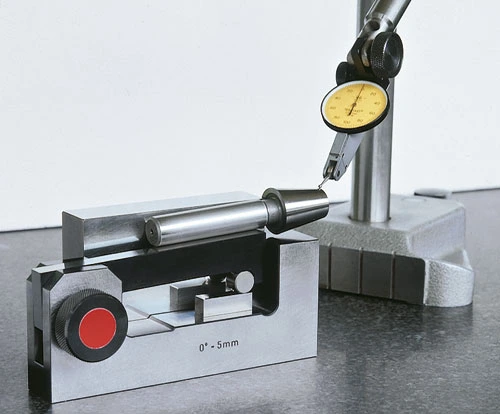

All components are hardened steel. Support and measuring faces are ground and lapped; two support faces contain high-holding-force magnets.
Variants and use
The long support is 159 mm, short support 65 mm, leg length 131 mm and sine length 100 mm. Gauge blocks are selected separately.
Advice and service
Ballbach assists with selecting gauge blocks and setting up the measuring or adjustment task.
Article variants
Select the suitable version
| Ballbach item no. | Version | Long support L | Short support K | Leg length S | Sine length R | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|
| 6039001 | 159 mm | 65 mm | 131 mm | 100 mm | €1,190.00 | |||
6039001 – Additional information about this versionHardened steel; magnetic support faces; 0 to 90° setting with gauge blocks. |
||||||||
